When deciding between a swing check valve and a spring check valve, it’s essential to understand their design differences, applications, and advantages. This guide breaks down their functions, helping you choose the right valve for your system’s needs.

Imagine you’re designing a pipeline system that requires a reliable check valve. You’re faced with two common options: the swing check valve and the spring check valve. Both are used to prevent backflow, but which one is best for your specific application? The decision depends on factors like flow rate, space constraints, and the environment in which the valve will operate. Let’s explore both valve types to help you make a well-informed decision.

Key Challenges in Choosing the Right Check Valve

1. Understanding Valve Selection Criteria

  • Challenge: Many users struggle to determine which type of check valve is best suited for their needs, especially when faced with numerous options.

  • Solution: Understanding the core differences between valve designs and their specific applications can simplify the selection process.

2. Flow Capacity and Efficiency

  • Challenge: A major concern when choosing a check valve is whether it can handle high flow rates without compromising efficiency.

  • Solution: Learn how both swing and spring check valves perform under varying conditions to find the most efficient option for your system.

3. Maintenance and Durability

  • Challenge: The long-term reliability of check valves can vary, and users often worry about the wear and tear caused by continuous use.

  • Solution: By understanding the maintenance requirements of each valve type, you can make a choice that ensures longevity and reduced operational costs.

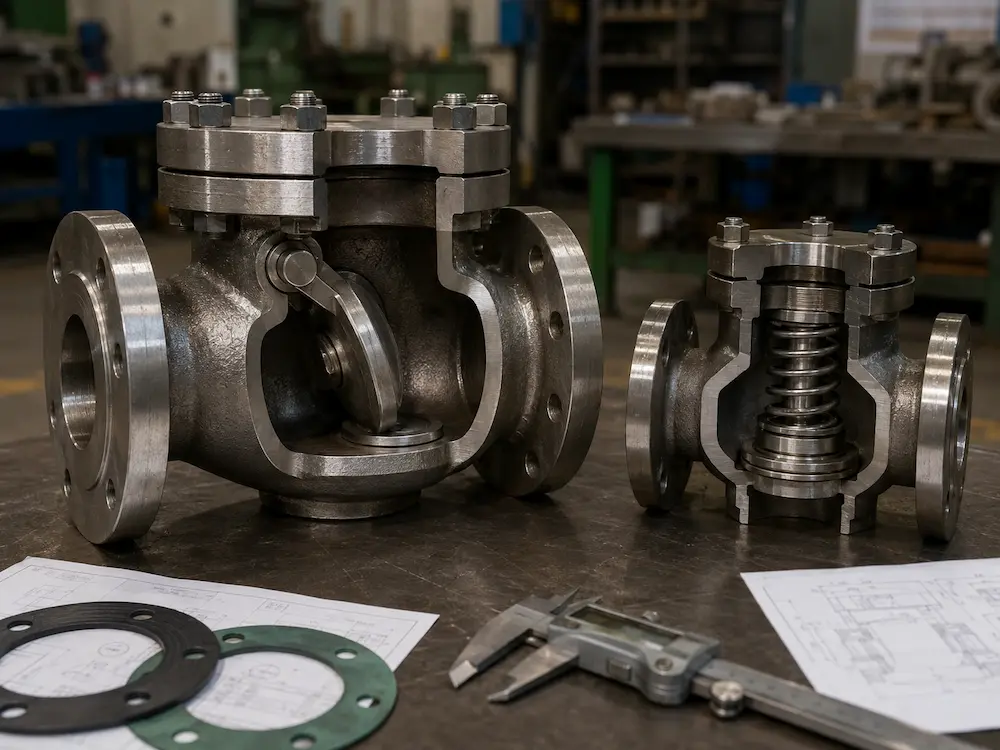

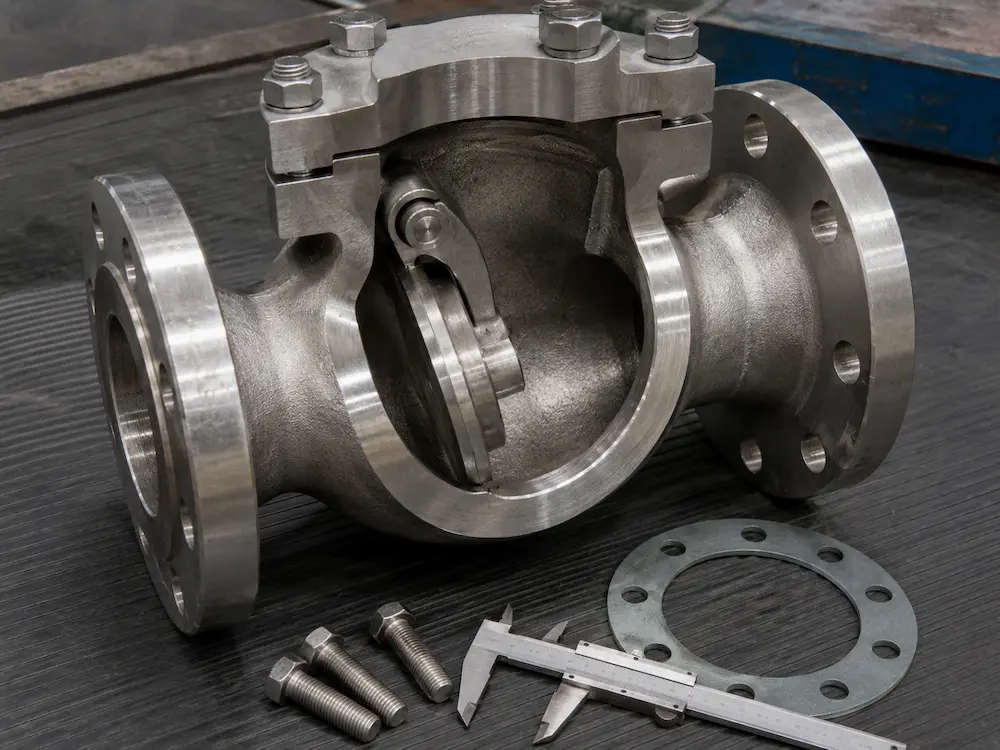

Swing check valve for low-pressure pipeline systems, effectively preventing backflow

How to Choose Between Swing and Spring Check Valves

1. Valve Selection: Key Differences

  • Swing Check Valve: Best for low-flow applications with little risk of backpressure. Its large disc swings open and closed depending on the flow direction, making it suitable for gravity-driven systems.

  • Spring Check Valve: Ideal for high-flow or high-pressure systems. The spring mechanism provides a quicker response, making it effective in preventing backflow even at high velocities.

2. Maximize Flow Efficiency

  • If your system demands high-flow capacity, a spring check valve may be the best option. It has a more compact design, reducing the chances of pressure drops.

  • Swing check valves, while reliable in low-flow systems, can introduce more resistance due to their larger moving parts.

3. Minimizing Maintenance Costs

  • Spring check valves typically require less maintenance due to their simple, robust design. However, regular inspections are still necessary to ensure the spring tension remains consistent.

  • Swing check valves may need more frequent attention due to wear on the pivot point of the disc, especially in systems with fluctuating flow rates.

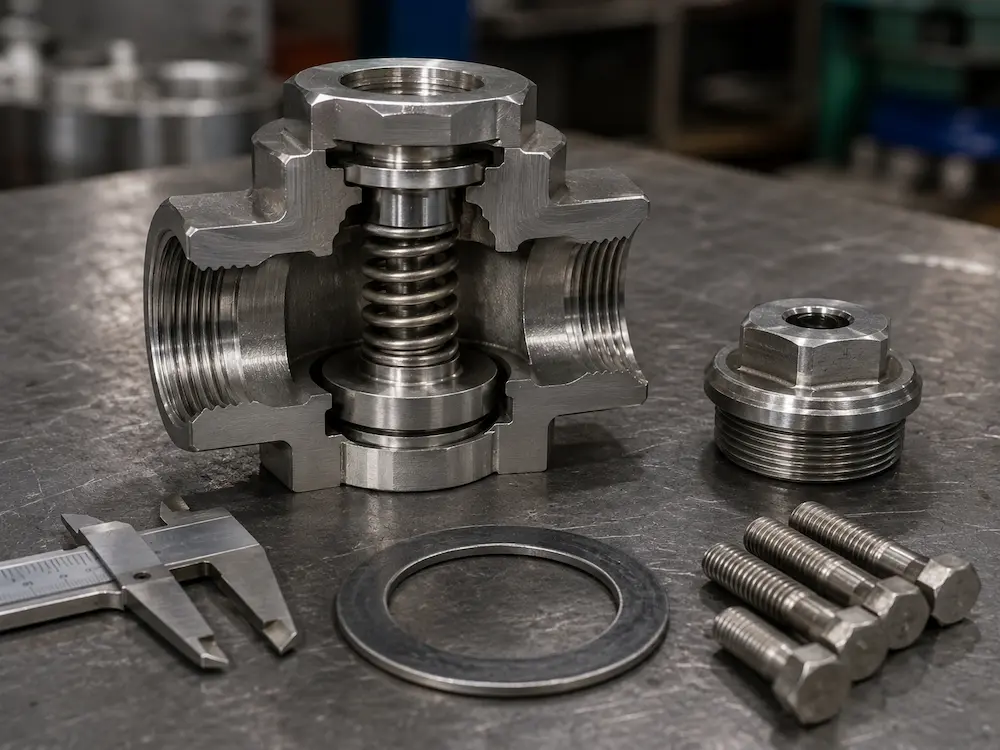

Spring check valve installation designed for high-pressure environments to prevent backflow

 Case Studies: Swing vs Spring Check Valves in Action

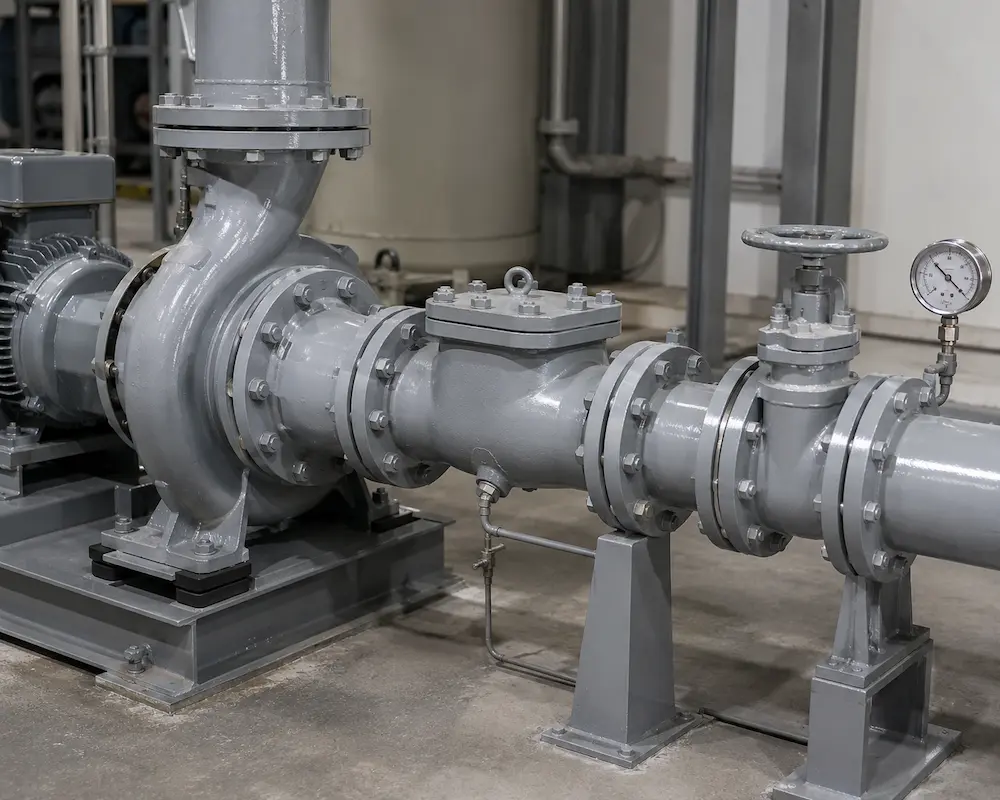

Consider a water treatment plant where backflow prevention is critical. In this case, a spring check valve would be ideal because of its quick response time, ensuring that the water doesn’t flow backward, even during sudden pressure changes. On the other hand, a swing check valve might be more suitable for a low-pressure irrigation system, where minimal flow fluctuations occur, and the system operates at a lower pressure.

Technical Comparison: Swing and Spring Check Valve Features

Feature Swing Check Valve Spring Check Valve
Flow Capacity Medium to Low High
Pressure Handling Low to Medium High
Design Large disc swings open and closed Compact with spring-loaded mechanism
Space Requirements Requires more space More compact, better for limited spaces
Maintenance Higher due to moving parts and wear Lower maintenance, but spring tension needs monitoring

Industry Trends: The Growing Popularity of Spring Check Valves

The growing demand for efficient, reliable, and space-saving solutions in industrial applications is driving the popularity of spring check valves. As industries face rising pressures to manage higher flow rates, especially in high-pressure environments, spring check valves are becoming increasingly popular due to their durability and space-saving design. However, swing check valves still have their place in low-pressure, gravity-driven systems, maintaining their relevance in certain industries.

Best Use Cases for Swing and Spring Check Valves

  • Swing Check Valve: Best suited for low-flow, low-pressure applications where space is not a constraint. Ideal for gravity-driven systems or where backpressure is minimal.

  • Spring Check Valve: Ideal for high-pressure, high-flow systems where space efficiency is a priority. Excellent for pipelines where rapid response times are necessary to prevent backflow.

Conclusion

Choosing the right check valve is crucial for ensuring the smooth operation of your system. Whether you opt for a swing check valve or a spring check valve depends on factors like flow rate, pressure, and space constraints. If you’re unsure which valve is right for your needs, contact us at Vcore Valves for expert guidance and customized solutions that fit your system’s unique requirements.

FAQ

1. What is the difference between a swing check valve and a spring check valve?

  • A swing check valve uses a swinging disc mechanism, ideal for low-flow applications. A spring check valve uses a spring-loaded mechanism, perfect for high-flow, high-pressure systems.

2. Which check valve is more durable?

  • Generally, spring check valves are more durable and require less maintenance due to their robust, simpler design.

3. Can a spring check valve handle high-pressure systems?

  • Yes, spring check valves are specifically designed to handle high-pressure environments with ease.

4. Are swing check valves suitable for gravity-fed systems?

  • Yes, swing check valves are well-suited for gravity-driven or low-pressure systems where backflow prevention is essential.

5. How often should I maintain a swing check valve?

  • Regular inspection is recommended, especially if the valve is used in a system with fluctuating flow rates or high levels of sediment.

6. Can a spring check valve be used in a low-pressure system?

  • While spring check valves are best for high-pressure systems, they can still be used in low-pressure systems where rapid response is required.

7. What applications are best for a swing check valve?

  • Swing check valves are ideal for applications with low flow, low pressure, and minimal backpressure, such as water treatment and irrigation systems.
