Extended stem butterfly valves are widely used in underground pipeline systems where direct manual or actuator access is required above ground level. This article shares a real-world installation case, explaining why extended stem butterfly valves are a practical and reliable solution for buried pipelines, municipal infrastructure, and industrial utility networks.
A Common Engineering Scenario
“The valve is underground, but the operator must be accessible—without digging every time.”
This is a familiar challenge for engineers working on buried pipelines. The solution lies not in complex automation, but in smart valve configuration.
Key Pain Points in Underground Pipeline Valve Projects
Limited Access After Installation
Once buried, standard butterfly valves become difficult to operate or maintain.
Risk of Water and Soil Ingress
Poorly designed stems can allow moisture, dirt, or sand into the valve chamber.
High Maintenance Costs
Incorrect valve selection leads to repeated excavation and downtime.
How Extended Stem Butterfly Valves Solve These Issues
Extended Stem Design

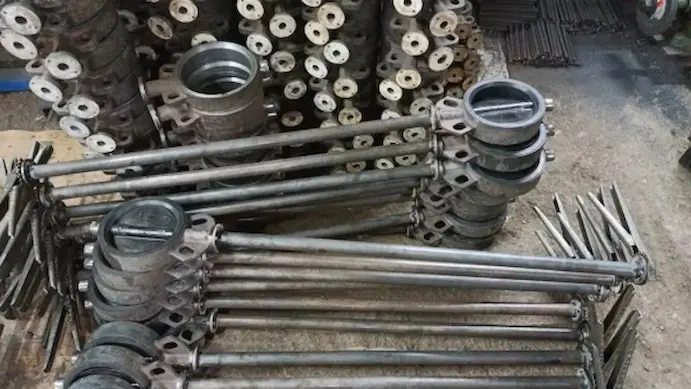

The valve stem is lengthened so the operating point reaches ground level or a valve box.
Reliable Sealing Structure
Combined with resilient seated butterfly valve design, leakage risk is minimised.
Simple, Proven Mechanics
No unnecessary complexity—just reliable torque transmission from handle or gearbox to disc.
Case Overview: Underground Pipeline Installation
In this installation case, extended stem butterfly valves were applied to underground pipelines carrying clean water and utility fluids.
Key Valve Specifications
-
Valve type: Extended stem butterfly valve
-
Body material: Ductile iron
-
Seat material: EPDM
-
Operation: Manual or gear-operated
-

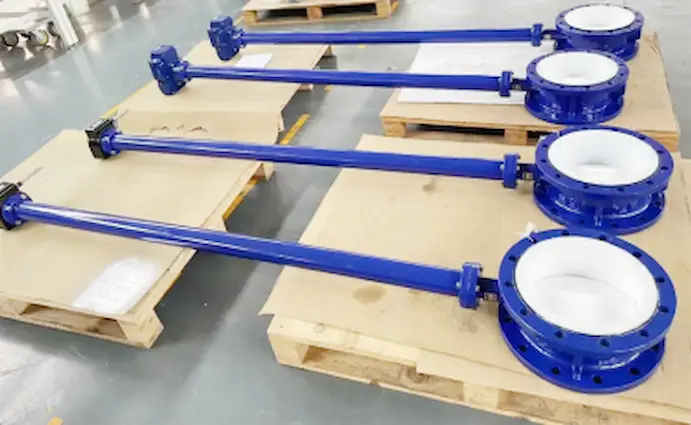

Installation: Buried pipeline with surface access
The extended stem allowed operators to open and close the valve safely without excavation.
Why Extended Stem Butterfly Valves Are Ideal for Buried Pipelines
Unlike standard designs, extended stem valves are purpose-built for underground use.
Technical Advantages
-
Clear operating access above ground
-
Reduced corrosion exposure at the stem
-
Compatibility with valve boxes and chambers
This makes them a preferred choice for underground butterfly valve applications.
Performance and Engineering Analysis
Compared with conventional butterfly valves:
| Feature | Standard Valve | Extended Stem Valve |
|---|---|---|
| Underground access | Poor | Excellent |
| Maintenance cost | High | Lower |
| Installation flexibility | Limited | High |
| Long-term reliability | Medium | High |
Field feedback indicates a significant reduction in maintenance interventions when extended stem designs are used correctly.
Manufacturing Considerations at Vcore Valve
As an experienced butterfly valve manufacturer in China, Vcore Valve designs extended stem solutions based on real installation depth and operating conditions.
Key production controls include:
-
Accurate stem length calculation
-
Stem straightness and alignment testing
-
Seat compression verification
-
Pressure and sealing tests
This ensures each industrial butterfly valve performs reliably once buried.
Market Trends and Application Growth
Urban infrastructure expansion and ageing pipeline replacement projects continue to drive demand for underground butterfly valves.
Engineers increasingly prefer:
-
Simple mechanical solutions
-
Long service life
-
Easy future operation
Extended stem butterfly valves align perfectly with these trends.
Installation and Usage Recommendations
For best results in underground applications:
-
Confirm stem length based on burial depth
-
Use protective valve boxes where possible
-
Avoid excessive torque during operation
-
Periodically inspect exposed stem sections
Correct planning at installation stage prevents most long-term issues.
Conclusion
This installation case demonstrates how extended stem butterfly valves from Vcore Valve provide a practical, cost-effective solution for underground pipeline systems. By focusing on accessibility, sealing reliability, and structural integrity, these valves reduce maintenance effort while improving operational confidence.
👉 Contact Vcore Valve to discuss extended stem butterfly valve solutions for your pipeline projects.
FAQs
What is an extended stem butterfly valve?
It is a butterfly valve with a longer stem designed for underground or hard-to-reach installations.
Why are extended stems used in buried pipelines?
They allow valve operation from ground level without excavation.
Are extended stem butterfly valves suitable for water systems?
Yes, especially with EPDM seats for clean water applications.
Can extended stem valves be gear operated?
Yes, manual, gearbox, or actuator options are available.
How is stem length determined?
Stem length is customised based on burial depth and valve box design.
Do these valves require special maintenance?
No special maintenance—just routine inspection of exposed components.
