This valve is commonly used in chemical processing, acid and alkali transfer, solvent handling, pickling lines, chlor-alkali systems, chemical dosing skids and other corrosive liquid pipelines. PTFE, FEP, PFA or other lining materials should be selected according to medium concentration, temperature, pressure, permeation risk and project specification.
Key Product Features
- Fluoropolymer lining isolates wetted metal body surfaces from corrosive media
- Suitable for acid, alkali, solvent and aggressive chemical service after compatibility review
- PTFE, FEP, PFA or project-specific lining material options
- Designed mainly for on-off isolation, not continuous throttling
- Flanged, wafer-type or project-specific connection according to selected model
- Manual lever, gear operator, pneumatic actuator or electric actuator options
- Anti-corrosion design for chemical plants, dosing systems and process pipelines
- Useful where PTFE seats alone are not enough to protect the metal body
Product Configuration
| Configuration Item | Common Configuration | Project Options |
|---|---|---|
| Valve Type | PTFE lined ball valve | Fully lined or partially lined structure according to selected model |
| Main Function | On-off isolation for corrosive chemical media | Manual or automated chemical isolation service |
| Lining Material | PTFE | FEP, PFA or project-specific fluoropolymer lining |
| Body Material | Cast iron, ductile iron or carbon steel with lining | Stainless steel or project-specified body material |
| Ball Structure | Lined ball or corrosion-protected ball design | Project-specific ball and stem structure after review |
| Operation | Manual lever or gear operator | Pneumatic actuator, electric actuator or position feedback accessory |
| End Connection | Flanged connection | Wafer-type or project-specific connection when available |
Technical Specifications
| Specification Item | Typical / Available Options |
|---|---|
| Product Type | PTFE lined ball valve / fluoropolymer lined ball valve |
| Primary Function | On-off isolation for corrosive chemical pipelines |
| Valve Design | Two-piece, split-body, fully lined or project-specific lined ball valve design |
| Size Range | According to selected product series and approved drawing |
| Pressure Rating | According to body design, lining material, temperature and project specification |
| Body Material | Cast iron, ductile iron, carbon steel, stainless steel or project-specified material |
| Lining Material | PTFE, FEP, PFA or selected fluoropolymer lining |
| Seat / Seal Material | PTFE, modified PTFE or project-specific sealing material |
| Operation | Manual, pneumatic or electric operation |
| End Connection | Flanged, wafer-type or project-specific connection according to selected model |
| Typical Media | Acid, alkali, solvent, chemical solution and corrosive liquid after compatibility review |
| Testing Reference | According to approved inspection specification and selected product standard where applicable |
Technical note: Do not publish fixed pressure, temperature, vacuum, chemical compatibility or lining thickness claims until the medium, concentration, temperature, pressure, lining material, valve structure and project specification are confirmed.
How a PTFE Lined Ball Valve Works

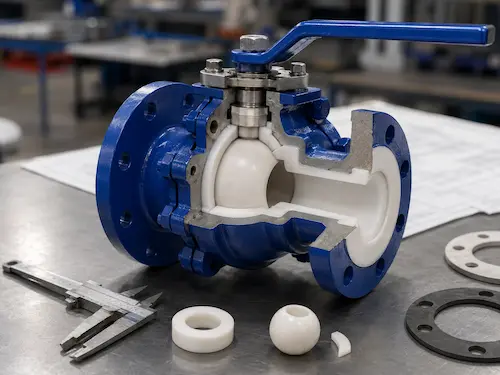

A PTFE lined ball valve uses a quarter-turn ball to open or close the flow path. When the valve is open, the ball port aligns with the pipeline and allows flow through the lined passage. When the valve is closed, the ball rotates 90 degrees and blocks the flow.
The main difference is that the wetted internal body surfaces are protected by fluoropolymer lining. This helps reduce direct contact between corrosive media and the metal valve body. The lining must remain continuous and properly bonded or locked into the body structure to maintain corrosion protection.

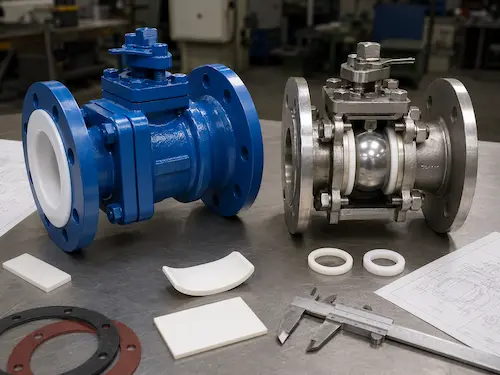

PTFE Lined Ball Valve vs PTFE Seated Ball Valve
| Comparison Item | PTFE Lined Ball Valve | PTFE Seated Ball Valve |
|---|---|---|
| Main Structure | Internal wetted body surfaces are lined with PTFE, FEP or PFA | PTFE is mainly used as seat or sealing material around the ball |
| Body Contact with Medium | Metal body is isolated from the process medium by lining | Medium may still contact metal body surfaces depending on design |
| Typical Use | Strong corrosive acid, alkali and aggressive chemical service after review | Compatible chemical, water treatment and utility isolation service |
| Selection Risk | Lining integrity, permeation, vacuum and temperature must be reviewed | Body material and seat compatibility must be reviewed |
| Quotation Requirement | Confirm medium, concentration, lining material, lining thickness and temperature | Confirm seat material, body material, end connection and pressure rating |
For applications where PTFE seats are enough and the body material is compatible with the medium, review our PTFE Seated Ball Valve. For broader ball valve options, visit the Ball Valve category.
Lining Material Selection
The lining material is the key corrosion-resistant barrier in a PTFE lined ball valve. Selection should be based on chemical compatibility, concentration, temperature, pressure, permeation tendency, vacuum condition and service cycle.
| Lining Material | Typical Consideration |
|---|---|
| PTFE | Common fluoropolymer lining for many corrosive chemical services after compatibility review |
| FEP | Often considered where melt-processable fluoropolymer lining is required |
| PFA | Often considered for demanding chemical service where higher lining integrity is required |
| Modified PTFE | May be selected for improved performance in specific service conditions |
Typical Applications
Typical Applications- Chemical processing pipelines
- Acid and alkali transfer lines after material compatibility review
- Chlor-alkali and chemical dosing systems
- Pickling, plating and surface treatment lines
- Solvent and corrosive liquid transfer
- Pharmaceutical and fine chemical process utility lines after specification review
- Corrosive wastewater and neutralization systems
- Skid-mounted chemical injection or storage systems
For broader chemical valve selection guidance, see Industrial Valves for Chemical Processing. For acid and alkali pipeline selection, see Corrosion-Resistant Valves for Acid and Alkali Pipelines.
Application Limits
- Not recommended for abrasive slurry with hard solids unless the lining and valve structure are specifically reviewed.
- Not suitable for high-temperature steam service unless the selected lined valve design is approved for that condition.
- High vacuum service requires special review of lining adhesion, support and deformation risk.
- Permeating chemicals may require special lining material, thickness or construction review.
- Crystallizing media may affect ball rotation and sealing performance.
- Continuous throttling may damage the lining or seat and is not recommended for standard on-off designs.
- Thermal cycling may affect lining stress and dimensional stability.
- Do not claim universal chemical resistance without checking medium concentration and temperature.
Inspection and Documentation
| Inspection / Document | Purpose |
|---|---|
| Material Test Certificate | Confirms body, flange and pressure-containing material when required. |
| Lining Inspection | Checks lining continuity, surface defects, lining edges and exposed metal risk. |
| Dimensional Inspection | Checks end connection, face-to-face length, flange drilling and valve marking. |
| Spark Test / Holiday Test | Checks lining integrity where required by project specification. |
| Shell Pressure Test | Verifies pressure-containing body integrity under agreed test condition. |
| Seat Leakage Test | Checks shut-off performance according to agreed inspection requirement. |
| Operation / Torque Test | Checks ball rotation, operating torque and actuator suitability. |
| Final Data Book | Collects drawings, certificates, inspection records, pressure test reports and packing documents. |

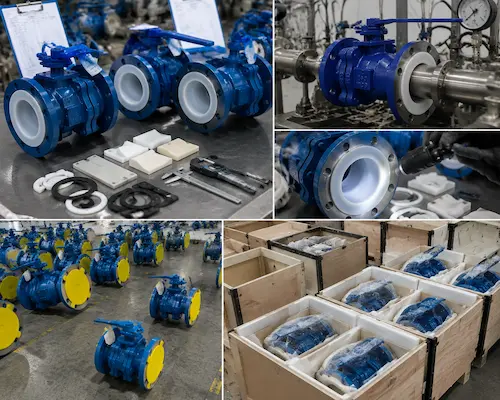

Export packing should protect flange faces, lining edges, ball port surfaces, stem packing area, actuator interface and machined connection surfaces. Valves can be packed with flange covers, moisture-resistant wrapping, foam separation and reinforced plywood cases according to size and shipment method.
Information Required for Valve Selection
- Valve size and quantity
- Medium name, concentration and chemical composition
- Operating temperature and design temperature
- Operating pressure and design pressure
- Required lining material: PTFE, FEP, PFA or other fluoropolymer
- Required lining thickness or lining inspection requirement if specified
- Solids content, crystallization risk or permeation risk
- Vacuum condition or negative pressure condition if applicable
- Connection standard and face-to-face requirement
- Manual, pneumatic or electric operation requirement
- Testing, documentation and third-party inspection requirement
FAQ
What is a PTFE lined ball valve used for?
A PTFE lined ball valve is used for on-off isolation in corrosive chemical pipelines where the metal body must be protected from aggressive process fluids.
Is a PTFE lined ball valve the same as a PTFE seated ball valve?
No. A PTFE lined ball valve has fluoropolymer lining on the wetted internal body surfaces. A PTFE seated ball valve mainly uses PTFE as the seat or sealing material around the ball.
Which lining material can be used?
PTFE, FEP, PFA or other fluoropolymer lining materials may be selected according to medium, concentration, temperature, pressure, permeation risk and project specification.
Can PTFE lined ball valves handle all chemicals?
No. Chemical compatibility must be checked according to chemical type, concentration, temperature, pressure and service condition. No lined valve should be described as universally resistant to all chemicals.
Can a PTFE lined ball valve be used for throttling?
Standard PTFE lined ball valves are mainly used for on-off isolation. Continuous throttling may damage the lining or seat, so a control valve or V port valve should be reviewed for regulating service.
