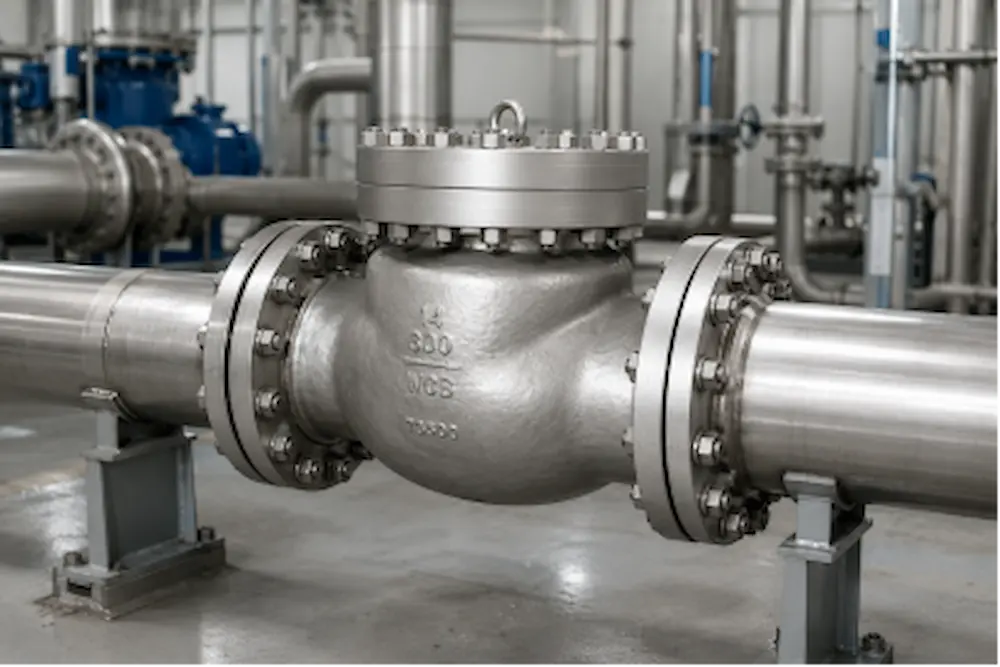

Product Overview
The Stainless Steel Swing Check Valve RF is designed to allow flow in one direction and automatically prevent reverse flow when the pipeline flow stops or changes direction. It is commonly used in pump discharge lines, water treatment systems, chemical pipelines, marine systems, HVAC circulation lines, and industrial utility pipelines.For buyers comparing different non-return valve options, Vcore Valve also offers a broader check valve product range for industrial pipeline backflow prevention applications.
The valve uses a hinged swing disc structure. When the medium flows forward, the disc opens under fluid pressure. When the flow reverses, the disc returns to the seat and closes the valve. This simple automatic operation helps protect pumps, equipment, and downstream pipeline systems from backflow damage.
The “RF” connection means Raised Face flange, which is widely used in industrial pipeline systems requiring bolted flange installation and gasket sealing. Before ordering, buyers should confirm flange standard, pressure class, material grade, seat type, flow direction, and working conditions.
Intro Table
| Product Name | Stainless Steel Swing Check Valve RF |
| Valve Type | Swing Check Valve / Non-Return Valve |
| Connection | RF Flanged End / Raised Face Flange |
| Material Options | SS304, SS316, CF8, CF8M, or project-specified stainless steel |
| Main Function | Automatic backflow prevention and one-way flow control |
| Applications | Water, oil, gas, chemical, marine, HVAC, and industrial pipelines |
| Customization | Material, pressure class, flange standard, seat type, testing, marking, packing |
Key Features
Stainless Steel Body for Corrosion Resistance
The stainless steel body provides better corrosion resistance than ordinary carbon steel in many industrial environments. SS304 or CF8 is suitable for clean water, air, and general industrial media, while SS316 or CF8M is often preferred for chloride-containing, marine, coastal, or more corrosive applications.
RF Flanged Connection for Secure Installation
The raised face flange design supports gasket sealing and bolted pipeline installation. It is suitable for industrial systems where maintenance access, flange compatibility, and sealing reliability matter. Buyers should confirm ASME, EN, DIN, JIS, or project-specific flange standards before production.
Swing Disc Design for Low Flow Resistance
The swing disc opens with forward flow and provides a relatively open flow path when fully open. This can help reduce pressure drop in suitable steady-flow systems. However, low or unstable flow may cause disc chatter, so proper sizing is important.
Automatic Backflow Protection
The valve works automatically without an actuator or manual operation. It helps prevent reverse flow, protect pumps, reduce contamination risk, and maintain one-way pipeline operation in water treatment, chemical, marine, HVAC, and industrial utility systems.
Specification Table
| Item | Typical Options | Buyer Notes |
|---|---|---|
| Valve Type | Swing Check Valve | For automatic non-return flow control |
| Body Material | SS304, SS316, CF8, CF8M | Select according to corrosion risk and medium |
| Connection | RF Flanged End | Confirm flange standard before ordering |
| Pressure Class | Class 150, Class 300, Class 600 or custom | Final rating depends on project standard |
| Size Range | Common industrial sizes, project-based customization | Confirm actual pipe size and flow rate |
| Disc Type | Hinged swing disc | Suitable for stable flow conditions |
| Seat Options | Metal seat, PTFE, EPDM, NBR or custom | Select by temperature, medium, and leakage requirement |
| Suitable Media | Water, oil, gas, steam, chemical fluids | Compatibility should be confirmed before production |
| Inspection | Pressure test, leakage test, dimensional inspection | Testing requirements can be project-specific |
Note: Final size, pressure class, material, flange standard, seat structure, and testing requirements should be confirmed according to actual working conditions and project drawings.
For projects requiring a broader size range and corrosion-resistant stainless steel construction, buyers may also compare this model with our stainless steel swing check valve DN50–DN600 option.
Application Scenarios
| Application | Why It Is Used | Selection Note |
|---|---|---|
| Water Treatment | Prevents reverse flow at pump outlets and process lines | Confirm flow rate and installation direction |
| Chemical Processing | Supports corrosion-resistant backflow prevention | Confirm SS304, SS316, or higher alloy compatibility |
| Marine / Coastal Systems | Handles higher corrosion-risk environments | SS316 or special material may be required |
| HVAC / Cooling Water | Prevents reverse circulation when pumps stop | Avoid oversizing to reduce disc chatter risk |
| Industrial Utility Lines | Maintains one-way flow in compatible media systems | Confirm pressure, temperature, and flange standard |
Material Selection: SS304 vs SS316
| Material | Common Casting Equivalent | Best For | Buyer Warning |
|---|---|---|---|
| SS304 | CF8 | Clean water, air, general industrial service | Not ideal for seawater or high-chloride media |
| SS316 | CF8M | Marine, coastal, chemical, chloride-containing media | Higher cost, but better corrosion resistance in many demanding environments |
How to Choose the Right Stainless Steel Swing Check Valve RF
Buyers should not select this valve by size alone. A reliable quotation should confirm the medium, pressure class, temperature, flow rate, flange standard, stainless steel grade, seat material, installation direction, and inspection requirement.If the system has low flow, frequent pump cycling, or water hammer concerns, buyers should compare a swing or spring check valve before confirming the final check valve type.
| Project Requirement | Recommended Selection Logic |
|---|---|
| Clean water or general utility line | SS304 / CF8 may be suitable |
| Chloride or marine environment | Consider SS316 / CF8M or higher alloy |
| Low or unstable flow | Check minimum flow velocity and disc chatter risk |
| Pump discharge line | Confirm water hammer risk and installation position |
| Strict leakage requirement | Confirm seat type and test standard before order |
The Value Edge
| Comparison Point | Factory Direct Supply | Standard Trading Company |
|---|---|---|
| Price | Same quality, better price potential through fewer middle layers. | Price may include additional trading margins. |
| Quality Control | Same price, better quality potential through material control, machining inspection, and pressure testing. | Quality depends on outsourced factory control. |
| Customization | Supports custom material, flange standard, pressure class, seat type, marking, and packing. | Customization may be slower due to communication layers. |
| Project Support | Direct confirmation for drawings, inspection photos, packing details, and delivery plan. | Project details may be delayed or misunderstood. |
Zero-Risk Guarantee for B2B Orders

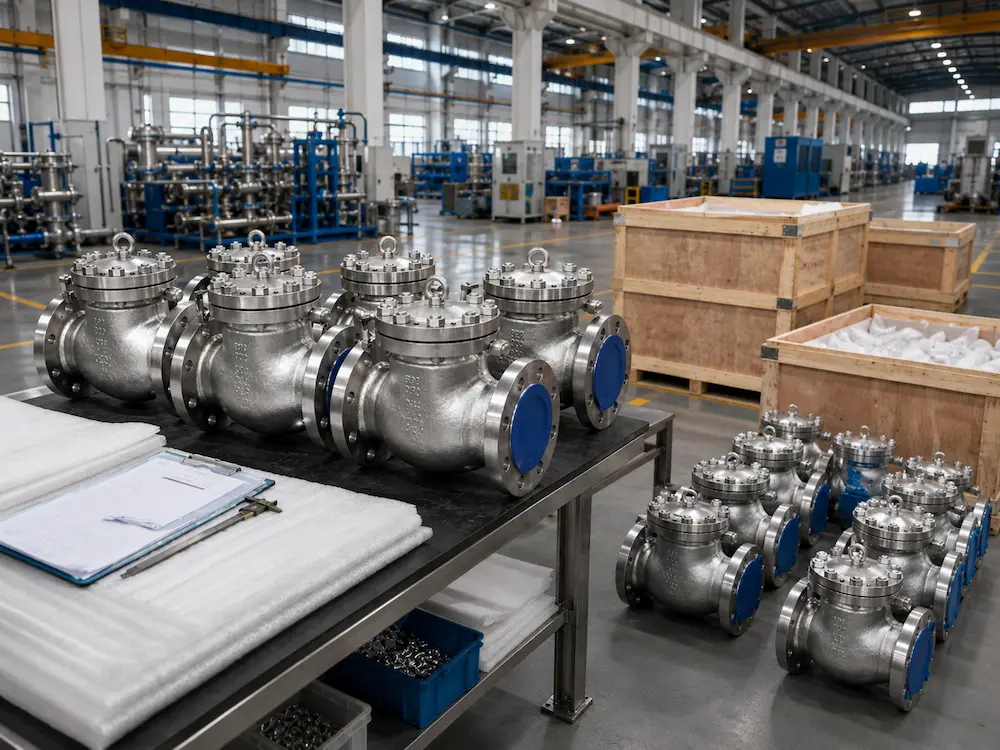

Shipping Safety: Reinforced export wooden crate packing, flange protection, pallet securing, and packing photos before shipment help reduce the risk of damage during international transport.
Specification Confirmation: Size, pressure class, RF flange standard, material grade, seat type, flow direction, marking, and nameplate details can be confirmed before production or shipment.
Urgent Delivery Support: For tight project schedules, priority production coordination, stock checking, batch shipment planning, and urgent delivery communication can be arranged based on order requirements.
After-Sales Support: If confirmed quality issues occur according to agreed order terms, compensation, replenishment, or remake support can be discussed to reduce buyer risk.
Common Buyer Mistakes
| Mistake | Possible Consequence | How to Avoid It |
|---|---|---|
| Selecting only by size | Wrong pressure class, flange standard, or material | Confirm full working conditions before quote |
| Using SS304 in chloride media | Early corrosion or leakage | Consider SS316 or higher alloy |
| Ignoring flow velocity | Disc chatter, noise, and seat damage | Check flow rate and valve sizing |
| Wrong installation direction | Valve cannot prevent backflow properly | Follow valve flow arrow and installation guidance |
| RF flange mismatch | Installation delay and extra adapter cost | Confirm flange standard, bolt holes, and face-to-face dimension |
Information Needed for Quotation
To receive a faster and more accurate quotation, buyers should provide valve size, pressure class, RF flange standard, body material, medium, temperature, installation direction, seat requirement, testing standard, quantity, and project drawings if available.
Why Choose Vcore Valve
Vcore Valve supports industrial buyers with stainless steel valves, check valves, ball valves, gate valves, globe valves, butterfly valves, and customized pipeline valve solutions. For Stainless Steel Swing Check Valve RF projects, we can help confirm material selection, pressure rating, flange compatibility, seat design, inspection requirement, packing method, and delivery planning.
For B2B buyers, a reliable valve supplier should do more than provide a price. The right supplier helps reduce wrong selection, installation mismatch, shipping damage, quality inconsistency, and after-sales risk. Vcore Valve supports factory-direct supply and project-based valve configuration for overseas buyers, distributors, contractors, and industrial users.To learn more about our valve supply capability, project support, and industrial valve experience, you can visit the About Vcore Valve page.
Final Buyer Insight
A Stainless Steel Swing Check Valve RF should be selected according to medium, pressure class, flange standard, stainless steel grade, flow condition, installation direction, and seat requirement. Buyers choose this product when they need corrosion resistance, automatic backflow prevention, RF flanged installation, and long-term pipeline protection.
This valve is especially suitable for water treatment, pump stations, chemical processing, marine systems, HVAC, oil and gas utility lines, and general industrial pipelines. Before ordering, avoid selecting only by size or price. Material compatibility, flange matching, flow velocity, and inspection requirements should always be confirmed.
FAQ
1. What is a Stainless Steel Swing Check Valve RF used for?
A Stainless Steel Swing Check Valve RF is used to prevent reverse flow in industrial pipeline systems. It allows medium to flow in one direction and automatically closes when flow stops or reverses. It is commonly used in water treatment, chemical processing, marine systems, oil and gas pipelines, HVAC systems, pump discharge lines, and general industrial applications.
2. What does RF mean in a swing check valve?
RF means Raised Face. It refers to the raised sealing surface on the flange connection. RF flanges are commonly used with gaskets in bolted pipeline connections. Buyers should confirm the correct RF flange standard, pressure class, gasket type, bolt hole layout, and face-to-face dimension before ordering.
3. Can a stainless steel swing check valve be installed vertically?
A stainless steel swing check valve can be installed in some vertical pipelines if the flow direction is upward and the valve design supports that installation. It is generally not recommended for vertical downward flow unless specifically confirmed by the manufacturer. Horizontal installation is common and should follow the flow arrow marked on the valve body.
4. Should I choose SS304 or SS316 for a swing check valve?
SS304 is suitable for many clean water, air, and general industrial applications. SS316 provides better resistance to chlorides and many corrosive environments, making it more suitable for marine, coastal, chemical, and chloride-containing media. Final material selection should be based on medium composition, temperature, pressure, and corrosion risk.
5. What information is needed to request a quotation?
Buyers should provide valve size, pressure class, RF flange standard, body material, medium, temperature, installation direction, seat requirement, testing standard, quantity, and any project drawings. This information helps the supplier recommend the correct stainless steel swing check valve and avoid wrong selection or installation mismatch.
