Steam service requires careful review of body material, trim design, packing, seat material, actuator sizing, pressure drop, noise, leakage requirement and temperature condition. A steam control valve should be selected according to actual process data, not only by pipeline size.
Key Product Features
- Designed for modulating steam flow or pressure control service
- Suitable for boiler steam, power plant steam and industrial steam pipelines after sizing review
- Globe control valve, angle control valve or project-specific body design available
- Single-seat, cage-guided, balanced or anti-noise trim options according to process condition
- Pneumatic actuator, electric actuator or control accessory package available
- Positioner, air filter regulator, solenoid valve, limit switch or feedback device can be configured
- High-temperature packing and bonnet design selected according to steam temperature
- Material, leakage class and trim design confirmed by approved datasheet
Product Configuration
| Configuration Item | Common Configuration | Project Options |
|---|---|---|
| Valve Type | Steam control valve | Globe type, angle type or project-specific control valve |
| Main Function | Steam flow or pressure regulation | Boiler, power plant, process steam or utility steam control |
| Body Material | Carbon steel or stainless steel | Alloy steel or project-specified high-temperature material |
| Trim Design | Single-seat or cage-guided trim | Balanced trim, anti-noise trim, anti-cavitation trim or hardened trim |
| Packing | Graphite packing for steam service | Bellows seal or special packing structure when specified |
| Operation | Pneumatic actuator with positioner | Electric actuator, smart positioner or fail-safe accessory package |
| End Connection | Flanged connection | Butt weld or project-specific connection according to piping standard |
Technical Specifications
| Specification Item | Typical / Available Options |
|---|---|
| Product Type | Steam control valve / industrial steam flow control valve |
| Primary Function | Modulating steam flow, pressure or process control |
| Valve Design | Globe control valve, angle control valve or project-specific steam control valve design |
| Size Range | According to selected product series, Cv calculation and approved drawing |
| Pressure Rating | According to steam pressure, temperature, body material and project specification |
| Body Material | Carbon steel, stainless steel, alloy steel or project-specified material |
| Trim Material | Stainless steel, hardened trim, alloy trim or project-specific trim material |
| Packing Material | Graphite, high-temperature packing or project-specific sealing structure |
| Flow Characteristic | Equal percentage, linear or selected according to control requirement |
| Operation | Pneumatic actuator, electric actuator or control accessory package |
| Typical Media | Saturated steam, superheated steam or industrial process steam after datasheet review |
| Testing Reference | According to approved inspection specification and selected product standard where applicable |
Technical note: Do not publish fixed Cv value, pressure rating, temperature range, leakage class, noise level or actuator size until steam pressure, temperature, flow rate, pressure drop, trim design and approved project datasheet are confirmed.
How a Steam Control Valve Works
A steam control valve regulates steam flow by changing the opening between the plug and seat. The actuator moves the stem according to a control signal, and the positioner adjusts valve travel to match the required control position.
In steam service, pressure drop, velocity, noise, erosion, leakage requirement and temperature must be reviewed carefully. For high-pressure or superheated steam, trim material, body material, packing structure and actuator force are important selection points.

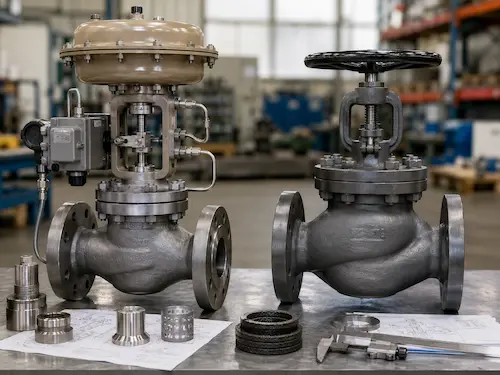

Steam Control Valve vs Steam Globe Valve
| Comparison Item | Steam Control Valve | Steam Globe Valve |
|---|---|---|
| Main Function | Modulating flow or pressure control through actuator and positioner | Manual shut-off or moderate regulation depending on design |
| Operation | Pneumatic or electric actuator with control signal | Handwheel, gear, electric or pneumatic operation depending on model |
| Selection Focus | Cv, pressure drop, actuator sizing, trim design, leakage class and noise | Body material, seat sealing, packing, shut-off and temperature suitability |
| Typical Use | Boiler steam control, power plant process control, superheated steam regulation | Steam isolation, utility steam lines and moderate throttling service |
For manual steam isolation or moderate regulation service, review our Steam Globe Valve. For broader process control products, visit the Control Valve category.

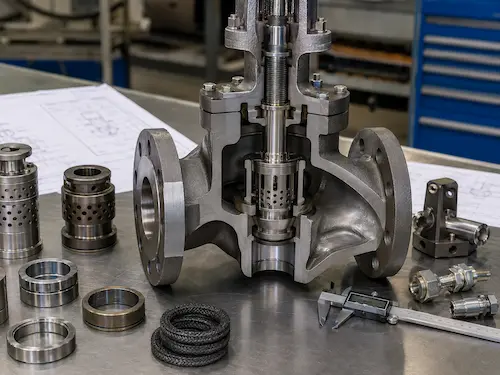

Trim and Actuator Selection
The trim and actuator package should be selected according to the real steam condition. Incorrect trim selection may cause noise, erosion, unstable control or excessive leakage. Incorrect actuator sizing may cause slow response, insufficient shut-off force or poor control accuracy.
| Selection Item | Purpose |
|---|---|
| Single-Seat Trim | Used where shut-off requirement and control condition are suitable for selected pressure drop |
| Balanced Trim | Helps reduce actuator force requirement in selected higher-pressure applications |
| Cage-Guided Trim | Supports guided flow control and can be configured for selected noise or pressure drop conditions |
| Hardened Trim | Considered for high velocity, erosion risk or demanding steam service |
| Pneumatic Actuator | Common for fast and stable modulating control when instrument air is available |
| Electric Actuator | Selected where electric control, site automation or air supply limitation applies |
| Positioner | Improves positioning accuracy according to the control signal |
Typical Applications
Typical Applications- Power plant steam flow control
- Boiler steam regulation systems
- Superheated steam process control
- Saturated steam distribution control
- Steam pressure letdown stations after sizing review
- Steam heating and process temperature control loops
- Industrial utility steam systems
- Refinery, chemical and manufacturing steam process lines
For power plant valve applications, review Power Plant Valves. For steam-related valve selection, see the Globe Valve category and Control Valve category.
Application Limits
- Steam control valves should not be selected only by nominal pipe size.
- High pressure drop may require special trim, noise calculation and erosion review.
- Superheated steam requires careful body, trim, packing and gasket material selection.
- Flashing, wet steam or condensate carryover may affect trim life and control stability.
- Excessive steam velocity can increase noise, vibration and erosion risk.
- Leakage class depends on selected trim, seat design and test specification.
- Actuator size must be checked against differential pressure and shut-off requirement.
- Do not claim zero leakage, no noise or universal high-temperature suitability without project confirmation.

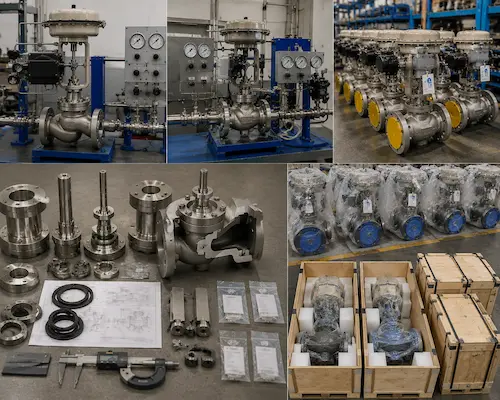

Inspection and Documentation
| Inspection / Document | Purpose |
|---|---|
| Material Test Certificate | Confirms body, bonnet, trim and pressure-containing material when required. |
| Dimensional Inspection | Checks face-to-face dimension, end connection, actuator interface and valve marking. |
| Shell Pressure Test | Verifies pressure-containing body integrity under agreed test condition. |
| Seat Leakage Test | Checks shut-off performance according to selected leakage requirement. |
| Functional Stroke Test | Checks stem travel, actuator movement, valve opening range and mechanical response. |
| Positioner Calibration | Verifies valve response to control signal where positioner is supplied. |
| Actuator Sizing Check | Confirms actuator output against pressure drop and shut-off requirement. |
| Final Data Book | Collects drawings, certificates, inspection records, test reports and packing documents. |
Export packing should protect flange faces, butt weld ends, stem packing area, actuator, positioner, tubing and control accessories. Valves can be packed with port covers, moisture-resistant wrapping, foam separation and reinforced plywood cases according to valve size and shipment method.
Information Required for Valve Selection
- Valve size and quantity
- Steam type: saturated steam, superheated steam or process steam
- Inlet pressure and outlet pressure
- Minimum, normal and maximum flow rate
- Operating temperature and design temperature
- Normal pressure drop and maximum differential pressure
- Required Cv value if available
- Required flow characteristic: equal percentage, linear or other
- Required leakage class if specified
- Control signal, fail position and actuator preference
- Noise limit, vibration concern or erosion concern if specified
- Body, trim, packing and gasket material requirement
- Connection standard, face-to-face requirement and installation direction
- Testing, documentation and third-party inspection requirement
FAQ
What is a steam control valve used for?
A steam control valve is used to regulate steam flow, pressure or process control conditions in boiler, power plant, steam distribution and industrial process systems.
Is a steam control valve the same as a steam globe valve?
No. A steam control valve is normally selected for modulating service with an actuator and positioner. A steam globe valve is often selected for manual shut-off or moderate regulation depending on its design.
What actuator is used for steam control valves?
Pneumatic actuators are commonly used for modulating control when instrument air is available. Electric actuators can also be selected according to site automation and power supply requirements.
What information is needed to size a steam control valve?
Steam pressure, temperature, flow rate, inlet pressure, outlet pressure, pressure drop, required Cv, leakage requirement, control signal and fail position are needed for valve sizing.
Can steam control valves be used for superheated steam?
They can be considered for superheated steam only when body material, trim material, packing, gasket, actuator and pressure-temperature rating are confirmed by the approved datasheet.
