Boiler feedwater service is different from ordinary water control service. It often involves high pressure, high differential pressure, elevated temperature, cavitation risk, erosion risk and strict control response requirements. Correct valve selection depends on inlet pressure, outlet pressure, flow rate, pressure drop, temperature, trim design, actuator sizing, leakage requirement and approved project datasheet.
Key Product Features
- Designed for boiler feedwater flow regulation and drum level control
- Suitable for high pressure liquid control service after sizing review
- Globe control valve, angle control valve or project-specific body design available
- Single-seat, cage-guided, balanced or multi-stage trim options according to process condition
- Anti-cavitation, anti-erosion or hardened trim can be reviewed for high pressure drop service
- Pneumatic actuator, electric actuator or control accessory package available
- Positioner, air filter regulator, solenoid valve, limit switch or feedback device can be configured
- Body material, trim material, leakage class and actuator size confirmed by approved datasheet
Product Configuration
| Configuration Item | Common Configuration | Project Options |
|---|---|---|
| Valve Type | Boiler feedwater control valve | Globe type, angle type or project-specific control valve |
| Main Function | Feedwater flow regulation and drum level control | Boiler, power plant or industrial high pressure water control |
| Body Material | Carbon steel or stainless steel | Alloy steel or project-specified high pressure material |
| Trim Design | Single-seat or cage-guided trim | Balanced trim, multi-stage trim, anti-cavitation trim or hardened trim |
| Seat Design | Metal seat | Selected leakage class according to project requirement |
| Operation | Pneumatic actuator with positioner | Electric actuator, smart positioner or fail-safe accessory package |
| End Connection | Flanged connection | Butt weld or project-specific connection according to piping standard |
Technical Specifications
| Specification Item | Typical / Available Options |
|---|---|
| Product Type | Boiler feedwater control valve / feedwater regulating valve |
| Primary Function | Feedwater flow regulation, boiler drum level control and high pressure liquid control |
| Valve Design | Globe control valve, angle control valve or project-specific feedwater control valve design |
| Size Range | According to selected product series, Cv calculation and approved drawing |
| Pressure Rating | According to feedwater pressure, temperature, body material and project specification |
| Body Material | Carbon steel, stainless steel, alloy steel or project-specified material |
| Trim Material | Stainless steel, hardened trim, alloy trim, hard-faced trim or project-specific trim material |
| Trim Options | Single-seat, balanced, cage-guided, multi-stage or anti-cavitation trim according to sizing result |
| Flow Characteristic | Equal percentage, linear or selected according to control requirement |
| Operation | Pneumatic actuator, electric actuator or control accessory package |
| Typical Media | Boiler feedwater, condensate, treated water or high pressure process water after datasheet review |
| Testing Reference | According to approved inspection specification and selected product standard where applicable |
Technical note: Do not publish fixed Cv value, pressure rating, temperature range, pressure drop limit, leakage class, cavitation resistance or actuator size until feedwater pressure, flow rate, pressure drop, temperature, trim design and approved project datasheet are confirmed.
How a Boiler Feedwater Control Valve Works
A boiler feedwater control valve regulates the flow of feedwater entering the boiler. In many systems, the valve receives a signal from the boiler drum level control system or process control loop. The actuator moves the valve stem, and the positioner adjusts valve travel to maintain the required feedwater flow or drum level response.
Because feedwater systems may operate at high pressure and significant pressure drop, the valve trim must be reviewed carefully. Incorrect trim selection can lead to cavitation, erosion, unstable control, excessive noise, vibration or premature seat damage.

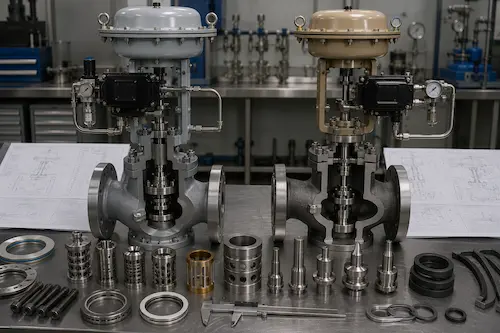

Boiler Feedwater Control Valve vs Steam Control Valve
| Comparison Item | Boiler Feedwater Control Valve | Steam Control Valve |
|---|---|---|
| Controlled Medium | Boiler feedwater or high pressure liquid | Saturated steam, superheated steam or process steam |
| Main Function | Feedwater flow regulation and boiler drum level control | Steam flow, pressure or process control |
| Main Risk | Cavitation, erosion, high pressure drop and control instability | Noise, high temperature, erosion, leakage and actuator sizing |
| Selection Focus | Liquid pressure drop, cavitation index, trim staging and actuator force | Steam pressure, temperature, pressure drop, velocity, noise and packing |
For steam-side control applications, review our Steam Control Valve. For broader process control products, visit the Control Valve category.
Boiler Feedwater Control Valve vs Ordinary Water Control Valve
A boiler feedwater control valve should not be treated as an ordinary water valve. Boiler feedwater service may involve high pressure, rapid load changes, deaerated water, elevated temperature and strict drum level control. The trim, actuator and control accessories must be sized according to real process data.
| Comparison Item | Boiler Feedwater Control Valve | Ordinary Water Control Valve |
|---|---|---|
| Application | Boiler feedwater, drum level and high pressure liquid control | General water flow or pressure control |
| Pressure Drop | Often higher and requires detailed sizing review | Usually lower or less severe depending on system |
| Trim Requirement | May require multi-stage, anti-cavitation or hardened trim | Standard trim may be enough for many clean water services |
| Control Importance | Directly related to boiler drum level and stable boiler operation | Depends on process requirement |
Trim and Actuator Selection

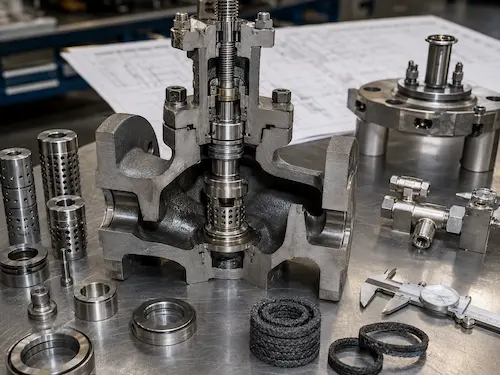

Trim and actuator selection are critical for boiler feedwater control. High differential pressure may require staged pressure reduction, hardened materials or special cage design. The actuator must provide enough thrust or torque to position the valve accurately and close against the specified pressure condition.
| Selection Item | Purpose |
|---|---|
| Single-Seat Trim | Used where pressure drop and shut-off requirement are suitable for selected valve size |
| Balanced Trim | Helps reduce actuator force requirement in selected high pressure applications |
| Cage-Guided Trim | Supports stable plug guidance and can be configured for selected pressure drop conditions |
| Multi-Stage Trim | Considered for high pressure drop service to manage cavitation or erosion risk |
| Hardened Trim | Considered for high velocity, erosion risk or demanding feedwater service |
| Pneumatic Actuator | Common for fast and stable modulating control when instrument air is available |
| Electric Actuator | Selected where electric control, site automation or air supply limitation applies |
| Positioner | Improves positioning accuracy according to the control signal |
Typical Applications
Typical Applications- Power plant boiler feedwater systems
- Boiler drum level control loops
- Feedwater pump discharge control after system review
- High pressure feedwater regulation
- Industrial boiler feedwater flow control
- Condensate and treated water control systems after datasheet review
- Steam generation auxiliary control systems
- Power plant and industrial utility water control loops
For power plant valve applications, review Power Plant Valves. For steam-related control applications, review Steam Control Valve and Angle Control Valve.
Application Limits
- Boiler feedwater control valves should not be selected only by nominal pipe size.
- High pressure drop service requires Cv calculation, cavitation review and actuator sizing.
- Severe cavitation, flashing, noise or erosion risk may require special trim design.
- Feedwater temperature and pressure must be checked against body material and pressure-temperature rating.
- Low-flow startup or bypass operation may require a separate startup valve or special rangeability review.
- Leakage class depends on selected trim, seat design and test specification.
- Actuator size must be checked against differential pressure and required fail position.
- Do not claim zero leakage, no cavitation, no erosion or universal boiler suitability without project confirmation.
Inspection and Documentation
| Inspection / Document | Purpose |
|---|---|
| Material Test Certificate | Confirms body, bonnet, trim, stem and pressure-containing material when required. |
| Dimensional Inspection | Checks face-to-face dimension, end connection, actuator interface and valve marking. |
| Shell Pressure Test | Verifies pressure-containing body integrity under agreed test condition. |
| Seat Leakage Test | Checks shut-off performance according to selected leakage requirement. |
| Functional Stroke Test | Checks stem travel, actuator movement, valve opening range and mechanical response. |
| Positioner Calibration | Verifies valve response to control signal where positioner is supplied. |
| Actuator Sizing Check | Confirms actuator output against pressure drop and shut-off requirement. |
| Final Data Book | Collects drawings, certificates, inspection records, test reports and packing documents. |

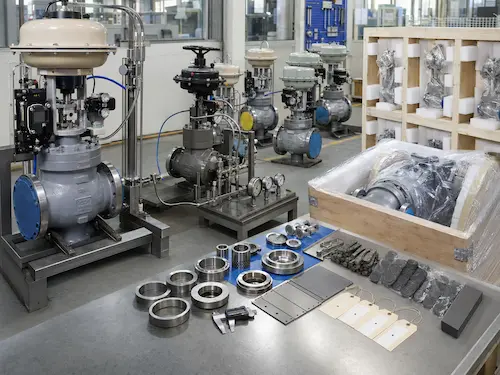

Export packing should protect flange faces, butt weld ends, trim parts, stem packing area, actuator, positioner, tubing and control accessories. Valves can be packed with port covers, moisture-resistant wrapping, foam separation and reinforced plywood cases according to valve size and shipment method.
Information Required for Valve Selection
- Valve size and quantity
- Service condition: boiler feedwater, drum level control or high pressure water control
- Inlet pressure and outlet pressure
- Minimum, normal and maximum flow rate
- Operating temperature and design temperature
- Normal pressure drop and maximum differential pressure
- Required Cv value if available
- Required flow characteristic: equal percentage, linear or other
- Cavitation, erosion, noise or vibration concern if specified
- Required leakage class if specified
- Control signal, fail position and actuator preference
- Body, trim, packing and gasket material requirement
- Connection standard, face-to-face requirement and installation direction
- Testing, documentation and third-party inspection requirement
FAQ
What is a boiler feedwater control valve used for?
A boiler feedwater control valve is used to regulate feedwater flow into the boiler and help control boiler drum level in power plant, boiler and industrial steam generation systems.
Is a boiler feedwater control valve the same as a steam control valve?
No. A boiler feedwater control valve controls high pressure liquid feedwater. A steam control valve controls saturated steam, superheated steam or process steam. Their medium, sizing concerns and trim requirements are different.
Why is cavitation important in feedwater control valves?
High pressure drop in feedwater service can create cavitation risk. Cavitation may damage trim, seat and body surfaces, so trim design and pressure drop must be reviewed before selection.
What actuator is used for boiler feedwater control valves?
Pneumatic actuators with positioners are commonly used for modulating control when instrument air is available. Electric actuators may also be selected according to site automation and power supply requirements.
What information is needed for quotation?
For quotation, provide feedwater pressure, flow rate, inlet pressure, outlet pressure, pressure drop, temperature, required Cv, leakage class, control signal, fail position, actuator type, material requirement and inspection requirements.
