Flange Type Pneumatic Drive Soft Sealed Butterfly Valve is selected for automated pipeline service where a flanged butterfly valve body is paired with a pneumatic actuator package. This product page focuses on selection checks, construction review, actuator coordination, and document control instead of publishing unconfirmed ratings. Final size, pressure class, seat material, temperature range, leakage class, and compliance details must be confirmed by the selected model and approved datasheet.
Flanged Pneumatic Butterfly Valve Overview
The Flange Type Pneumatic Drive Soft Sealed Butterfly Valve is designed for projects that need repeatable open-close operation or basic modulating control with a compact quarter-turn body. A soft seat helps support tight shutoff when the elastomer, disc edge, shaft sealing arrangement, and actuator torque are matched to the real media and operating condition. For procurement teams, the important review points are flange connection, seat compatibility, actuator type, accessory list, inspection plan, and packing requirement.
Body, Disc, and Soft Seat Review
The Flange Type Pneumatic Drive Soft Sealed Butterfly Valve should be reviewed as a complete sealing system, not as a body style alone. The seat material must be suitable for the process media, cleaning condition, and operating temperature confirmed by the project. Disc material, shaft sealing, body lining or coating, and flange drilling should be checked against the approved drawing before production. Vcore Valve can align the body and seat selection with the buyer’s valve list and inspection requirement.

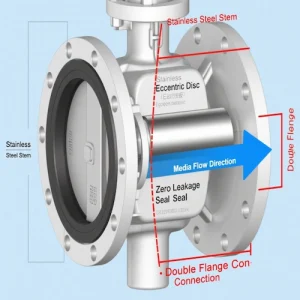

Internal Structure and Flow Path
The internal design should be checked for seat compression, disc clearance, stem support, and flow direction requirements. This review helps prevent problems such as excessive torque, seat wear, actuator undersizing, or incorrect installation orientation. Because actual construction can vary by model, the structure drawing and bill of materials should be confirmed before any fixed specification is released to the customer.
Pneumatic Actuator and Site Application
For the Flange Type Pneumatic Drive Soft Sealed Butterfly Valve, the pneumatic actuator package should be selected from real torque demand, air supply, fail position, operating frequency, and control mode. Accessories such as solenoid valve, limit switch box, filter regulator, positioner, manual override, and cable entry should be listed clearly in the quotation. For water treatment, utility, chemical, building services, and general industrial pipelines, Vcore Valve reviews the actuator package together with the valve body so the installed unit matches the automation plan.
Inspection, Packing, and Export Review
Before shipment, the approved order should define visual inspection, functional operation checks, actuator response, nameplate details, packing method, and documentation package. If the project requires witness inspection, hydrostatic test, pneumatic test, coating review, or special marking, these items should be written into the purchase order and confirmed by Vcore Valve before manufacturing or final inspection.
Product Configuration
| Configuration Item | Selection Guidance | Confirmation Method |
|---|---|---|
| Valve body | Flanged butterfly valve body for automated service | Confirmed by selected model and approved drawing |
| Seat design | Soft sealed seat selected for media and service condition | Confirmed by approved datasheet |
| Actuator | Pneumatic actuator for on-off or control duty | Confirmed by torque calculation and air supply data |
| Accessories | Limit switch, solenoid valve, filter regulator, positioner, or manual override as required | Confirmed by automation specification |
| Connection | Flange drilling and face-to-face dimension to match piping design | Confirmed by project drawing |
Technical Specifications
| Item | Published Value | Note |
|---|---|---|
| Size range | Confirmed by selected model and approved datasheet | No fixed range is published without model confirmation. |
| Pressure class | Confirmed by selected model and approved datasheet | Must match flange standard and piping requirement. |
| Temperature range | Confirmed by selected model and approved datasheet | Depends on seat, body, disc, and media condition. |
| Leakage class | Confirmed by selected model and approved datasheet | Inspection method must be agreed before order release. |
| Standard compliance | Confirmed by selected model and approved datasheet | Project-specific standards should be listed in the purchase order. |
Selection Comparison
| Option | When It Fits | Review Point |
|---|---|---|
| Manual soft sealed butterfly valve | Local manual operation with lower automation demand | Operator access and handwheel or lever position |
| Flange Type Pneumatic Drive Soft Sealed Butterfly Valve | Automated quarter-turn isolation or basic control service | Actuator torque, air supply, fail action, and signal accessories |
| Electric actuated butterfly valve | Where electric power is preferred over plant air | Power supply, enclosure, duty cycle, and control signal |
| Metal seated butterfly valve | Higher temperature or abrasive service after engineering review | Seat leakage expectation and material compatibility |
Pre-Order Checklist
| Checklist Item | Why It Matters |
|---|---|
| Media and service condition | Supports correct seat, disc, shaft seal, and body material selection. |
| Flange standard and pipeline drawing | Prevents flange drilling or face-to-face mismatch. |
| Air supply and control signal | Defines pneumatic actuator and accessory configuration. |
| Fail position requirement | Determines actuator type and site safety behavior. |
| Inspection and documentation scope | Aligns testing, marking, certificates, and export packing before production. |
Selection Note
For general valve terminology and industry context, buyers can refer to the Valve Manufacturers Association. Project acceptance should still be based on the approved Vcore Valve quotation, drawing, datasheet, and inspection plan. To compare other valve categories, visit the Vcore Valve product catalog.
Flange Type Pneumatic Drive Soft Sealed Butterfly Valve FAQ
What is the Flange Type Pneumatic Drive Soft Sealed Butterfly Valve used for?
It is used for automated pipeline isolation or basic flow control where a flanged soft seated butterfly valve and pneumatic actuator package are suitable for the confirmed service condition.
Are fixed ratings published on this page?
No. Final size, pressure class, temperature range, leakage class, material, and standard compliance must be confirmed by the selected model and approved datasheet.
What should be confirmed before ordering?
Confirm media, flange standard, actuator type, air supply, control signal, fail position, accessories, inspection scope, marking, and export packing requirement.
Can Vcore Valve help review actuator accessories?
Yes. Vcore Valve can review solenoid valve, limit switch box, filter regulator, positioner, manual override, and other accessories according to the automation plan.
