Quick Summary
Bellows Globe Valve is designed for applications where external leakage through the stem packing area must be reduced. It combines a globe valve flow path with a metal bellows sealing barrier, making it useful for steam, thermal oil, chemical, vacuum and other leakage-sensitive service after material confirmation.
Key Product Features
- Bellows sealing barrier helps reduce external leakage through the stem area.
- Globe valve structure supports shut-off and moderate regulation duties.
- Useful for steam, thermal oil, chemical and leakage-sensitive pipelines.
- Material and bellows design should be reviewed by pressure, temperature and medium.
- Manual, gear, electric or pneumatic operation can be selected by project need.

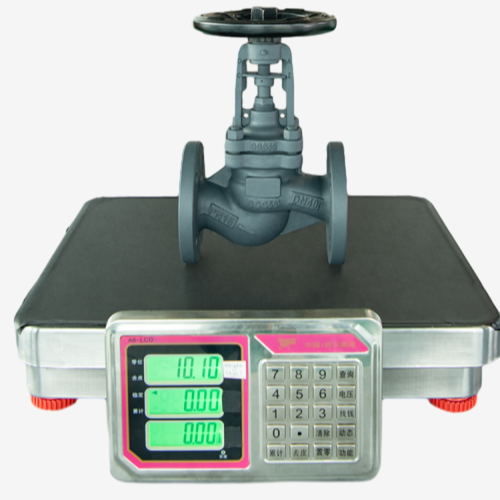

Bellows Globe Valve Overview
A bellows globe valve uses a metal bellows assembly between the stem and the process medium. This design helps isolate the stem packing area and reduce the risk of external leakage. For buyers handling steam, thermal oil, chemical fluids, vacuum service or valuable media, reducing stem leakage can improve safety, maintenance planning and environmental control. Final valve selection should still be based on medium, pressure, temperature, cycling frequency and material compatibility.
Product Configuration
| Configuration Item | Common Configuration | Project Options |
|---|---|---|
| Valve Type | Bellows globe valve | Straight-through or project-specific globe valve design |
| Main Function | Shut-off and moderate regulation | Not a replacement for every control valve |
| Stem Sealing | Metal bellows plus backup packing | Bellows material selected by service |
| Body / Trim | Material according to pressure and medium | Carbon steel, stainless steel, alloy or specified material |
| Operation | Handwheel, gear, electric or pneumatic | Selected by size and control requirement |
| Project Support | Inspection and document review | MTC, pressure test, leakage test and packing documents as required |
Technical Specifications
| Specification Item | Typical / Available Options | Selection Note |
|---|---|---|
| Product Type | Bellows globe valve | For leakage-sensitive industrial service |
| Size | Available according to project requirement | Confirm with pipeline drawing |
| Pressure Rating | ANSI Class, PN, JIS or project standard | Confirm pressure-temperature rating |
| Body Material | Carbon steel, stainless steel, alloy or specified material | Select by medium and temperature |
| Bellows Material | Stainless steel or project-confirmed alloy | Must match cycling, temperature and corrosion risk |
| Connection | Flanged, butt weld or project-specific connection | Confirm standard before ordering |
| Operation | Handwheel, gear, electric or pneumatic | Select by torque and control need |
Exact size, pressure rating, material, connection standard and test requirement should be confirmed from the project datasheet before ordering. When the working medium is corrosive, abrasive, toxic, flammable, very hot or very cold, material confirmation is more important than a generic catalogue description.

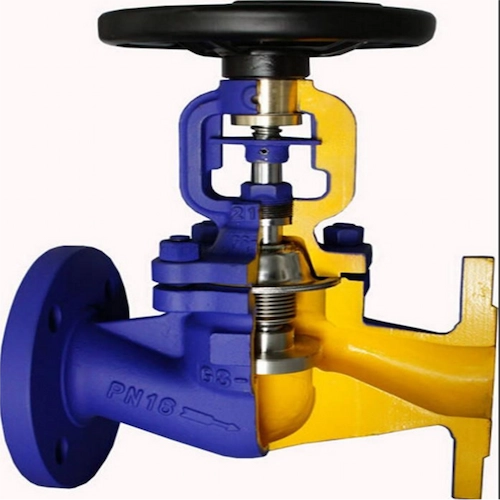

How the Bellows Seal Design Reduces Stem Leakage
In a conventional globe valve, stem packing is a primary external sealing point. A bellows globe valve adds a welded or formed bellows barrier that separates the process medium from the packing area during normal operation.
- The bellows barrier helps reduce leakage risk around the stem.
- Backup packing provides an additional safety sealing point.
- Bellows material must be suitable for temperature, pressure and media.
- Cycling frequency should be considered because bellows fatigue can affect service life.
Bellows Seal Globe Valve vs Standard Globe Valve
Both valves can provide shut-off or regulation, but the bellows seal design is selected when external leakage control is more important.
| Comparison Item | Bellows Seal Globe Valve | Alternative Valve / Design | Buyer Note |
|---|---|---|---|
| Stem Leakage Control | Bellows barrier helps reduce external leakage | Relies mainly on packing | Use bellows design for leakage-sensitive service. |
| Maintenance | Less routine packing adjustment in suitable service | Packing may need more attention | Still inspect bellows and backup packing. |
| Cost | Usually higher due to bellows structure | Generally lower initial cost | Compare total leakage and maintenance cost. |
| Temperature / Cycling | Must match bellows design limits | Depends on packing and trim | Confirm cycling frequency and temperature. |
| Applications | Steam, thermal oil, chemical, vacuum, hazardous media | General utility and process lines | Select by leakage risk and project requirement. |
Bellows Globe Valve: 5 Key Selection Points
Stem leakage control is only one part of selection. Bellows fatigue, material, pressure-temperature rating and media compatibility must also be reviewed.
| Selection Factor | Why It Matters | What Buyers Should Confirm |
|---|---|---|
| Medium | Determines corrosion and safety risk | Fluid name, concentration and hazard level |
| Temperature | Affects bellows, packing and gasket performance | Normal and maximum temperature |
| Cycling Frequency | Bellows movement creates fatigue considerations | Expected opening/closing cycles |
| Pressure Class | Affects body and bellows design | Design and operating pressure |
| Regulation Need | Globe structure can regulate, but conditions matter | Flow, pressure drop and control requirement |
Seat, Sealing and Maintenance Considerations
The bellows assembly is the main stem-sealing barrier, while packing provides backup protection. Both must be compatible with temperature, pressure and medium.
- Bellows material should be reviewed for corrosion and temperature.
- Backup packing should not be ignored during maintenance planning.
- Seat leakage and stem leakage are different requirements and should be specified separately.
- For hazardous media, inspection and leakage requirements should be clearly stated.
Typical Applications
Bellows globe valves are used where external leakage control is important for safety, environment or media loss.
- Steam and thermal oil pipelines
- Chemical process and utility lines after material confirmation
- Vacuum and leakage-sensitive systems
- Power plant auxiliary pipelines
- Hazardous or high-value media isolation
- Industrial process lines requiring lower packing leakage risk
Application Limits
- Bellows design has pressure, temperature and cycling limits.
- Not every corrosive medium is suitable without material review.
- Not a substitute for a dedicated control valve in severe regulation service.
- Bellows fatigue should be considered for frequent operation.
- Project leakage requirement should be confirmed before production.
Engineering Notes for Buyers
For a bellows globe valve, the best technical choice is usually made before the purchase order is placed. A valve can have the right nominal size and still fail early if the medium, temperature, solids content, corrosion risk or operation method is not fully reviewed. This is why Vcore recommends checking the service condition together with the drawing, material list and inspection requirement.
Match the Valve to Real Working Conditions
Many product failures come from selecting a valve only by name or pressure class. In actual projects, the same valve type may behave differently in clean water, steam, slurry, gas, chemical utility or low-temperature service. Buyers should confirm whether the valve is used for isolation, regulation, emergency shut-off, maintenance bypass or process safety before final selection.
Review Material Compatibility Early
Body, trim, seat, gasket, packing and bolting materials should be checked as a complete system. If the medium is corrosive, abrasive, oxygen-related, high temperature, low temperature or hazardous, the safest wording is to confirm material suitability according to the project datasheet instead of relying on a general catalogue description.
Confirm Operation and Maintenance Access
Manual operation may be enough for small sizes or low-frequency use, while gearboxes or actuators may be needed for larger valves, remote operation or repeated cycling. Maintenance access should also be reviewed. A valve installed in a difficult position may require a different actuator, stem orientation or inspection plan.
Use Documentation to Reduce Procurement Risk
Export projects often require drawings, test reports, certificates, inspection records, packing photos and nameplate confirmation. These documents help the buyer verify that the delivered valve matches the approved technical requirement before shipment.
Common Selection Mistakes to Avoid
- Selecting only by nominal size without confirming pressure, temperature and medium.
- Using a shut-off valve for continuous throttling when a control valve or globe valve would be more suitable.
- Ignoring seat, packing, gasket or trim material when the body material looks acceptable.
- Assuming one standard valve design is suitable for corrosive, abrasive, low-temperature or high-temperature service.
- Choosing an actuator before confirming operating torque, differential pressure and cycling frequency.
- Forgetting installation space, flange drilling, face-to-face length or maintenance access.
Ordering Workflow for Project Buyers
| Step | Buyer Input | Vcore Review Focus |
|---|---|---|
| 1. Application Review | Medium, pressure, temperature, flow condition and function | Valve type, material direction and service suitability |
| 2. Drawing Confirmation | Size, connection standard, face-to-face, actuator space | Dimensional compatibility and installation risk |
| 3. Material Confirmation | Body, trim, seat, gasket, packing and bolting requirements | Corrosion, abrasion, temperature and media compatibility |
| 4. Operation Method | Manual, gearbox, electric, pneumatic or hydraulic operation | Torque, frequency, control mode and site conditions |
| 5. Inspection Scope | Test reports, MTC, PMI, coating, packing and special documents | Order traceability and shipment readiness |
Why Work With Vcore Valve
Vcore Valve focuses on helping buyers select valves according to real project conditions rather than using one generic description for every application. For distributors, EPC companies, plant maintenance teams and OEM equipment builders, this can reduce communication cost and help avoid mismatch during installation. When a project has uncertain media, special documents or non-standard requirements, Vcore can review the datasheet, drawing and application notes before quotation. This is especially important for valves used in critical isolation, leakage-sensitive service, abrasive media, low-temperature systems, high-temperature pipelines or automated operation.
Inspection and Documentation
For export projects and engineering procurement, inspection documents help buyers verify that the supplied valve matches the confirmed technical requirement. Vcore Valve can discuss the document scope before production according to the project order.
| Inspection / Document | Purpose | When to Request |
|---|---|---|
| Material Test Certificate | Confirms pressure-containing and wetted component material grades and heat numbers. | When material traceability is required by the buyer or project. |
| Dimensional Inspection | Checks connection, face-to-face, operation direction and main dimensions. | For replacement projects and flange matching. |
| Pressure Test Report | Records shell and seat test results according to the agreed standard. | For most industrial valve orders. |
| Visual and Coating Inspection | Checks casting surface, coating quality, marking and nameplate details. | For export projects and outdoor installation. |
| Packing List and Export Marking | Confirms packaging, quantity, gross weight and shipping marks. | Before shipment and customs documentation. |
| Special Test / Cleaning Record | Documents low-temperature, leakage, cleaning or other agreed tests. | Only when the project requires it. |
Information Required for Valve Selection
- Medium and leakage sensitivity
- Project size and quantity
- Pressure, temperature and cycling frequency
- Body, trim, bellows, gasket and packing material requirements
- Connection standard, operation method and leakage test requirements
Bellows Globe Valve Buying Checklist
A Bellows Globe Valve should be selected by leakage risk, medium, pressure, temperature, bellows material, cycling frequency, connection standard and inspection requirement.
- Valve size and quantity
- Medium and leakage sensitivity
- Pressure, temperature and cycling frequency
- Body, trim, bellows, gasket and packing materials
- Connection standard and installation orientation
- Manual, gear, electric or pneumatic operation
- Required leakage test and inspection documents
Related Valve Resources
Review related valve pages that are technically closer to this product family:
Standards and Documentation References
For engineering terminology and valve specification context only, buyers may review ASME B16.34 valve standards information. Final standard compliance, size range, pressure class, temperature range and leakage requirement must be confirmed from the selected model datasheet and purchase specification.
FAQ
1. What is a bellows globe valve?
It is a globe valve with a metal bellows barrier designed to reduce external leakage through the stem area.
2. Where is it commonly used?
It is commonly used in steam, thermal oil, chemical, vacuum and leakage-sensitive industrial pipelines.
3. Can it be used for flow regulation?
A globe valve can support moderate regulation, but severe control service should be reviewed separately.
4. Why is bellows material important?
The bellows must withstand the medium, pressure, temperature and cycling frequency of the application.
5. What should be confirmed before ordering?
Confirm medium, pressure, temperature, cycling, materials, connection, operation method and leakage test requirements.
Practical Takeaway
A bellows globe valve is a strong choice when stem leakage reduction is important, but the final configuration must match medium, pressure, temperature, bellows material and cycling conditions.
