Quick Summary
Three Way Globe Valve for mixing, diverting or combining flow in industrial pipelines. Vcore Valve reviews flow path, medium, pressure-temperature condition, materials, actuation and documentation requirements according to the confirmed project datasheet.
Key Product Features
- Three-way body arrangement supports mixing, diverting or combining flow applications.
- Globe-style flow path can support shut-off and moderate regulation after design review.
- Port direction and installation orientation can be reviewed according to pipeline layout.
- Manual, pneumatic or electric operation can be selected by operating frequency and control logic.
- Material and sealing choices are matched to confirmed medium and service condition.
Three Way Globe Valve Overview
A Three Way Globe Valve is used when one valve body must help mix, divert or combine flow paths in a controlled pipeline arrangement. Unlike a simple two-way shut-off valve, the selection depends on port arrangement, flow direction, pressure balance, operation method and whether the valve is intended for manual switching or automated control.
Vcore Valve reviews the actual service condition before recommending a configuration. Flow path, medium, pressure-temperature condition, seat material, actuator type, connection standard and inspection scope should be confirmed from the project datasheet rather than copied from a generic product list.
Product Configuration
| Configuration Item | Common Configuration | Project Options |
|---|---|---|
| Valve Type | Three way globe valve | Mixing, diverting or combining arrangement after drawing review |
| Main Function | Flow path switching or moderated flow control | Not every design is suitable for severe control service |
| Port Arrangement | Project-specific body and port layout | Confirm flow direction before quotation |
| Seat / Trim | Selected according to medium and operating duty | Soft or metal seating after service confirmation |
| Operation | Manual, gear, pneumatic or electric | Selected according to control signal and operating frequency |
| Project Support | Flow path and drawing review | Datasheet and documents according to order scope |
Technical Specifications
| Specification Item | Typical / Available Options | Selection Note |
|---|---|---|
| Product Type | Three way globe valve | For mixing, diverting or combining pipeline service |
| Size | Available according to project pipeline requirement | Confirm with drawing and selected model |
| Pressure Rating | Project-specific rating after confirmation | Do not rely on old URL wording for final specification |
| Body Material | Carbon steel, stainless steel, alloy or specified material | Review medium, temperature and corrosion risk |
| Connection | Flanged, welded or project-specific end connection | Confirm standard and face-to-face before production |
| Operation | Manual, gear, pneumatic or electric | Actuator selection depends on torque and control logic |
| Inspection | Pressure test, seat test and documents as required | Special tests only when specified by purchase documents |
Exact size, pressure rating, material, connection standard, leakage test requirement and inspection scope should be confirmed from the selected model datasheet before ordering. When the working medium is corrosive, abrasive, toxic, flammable, very hot or very cold, material confirmation is more important than a generic catalog description.

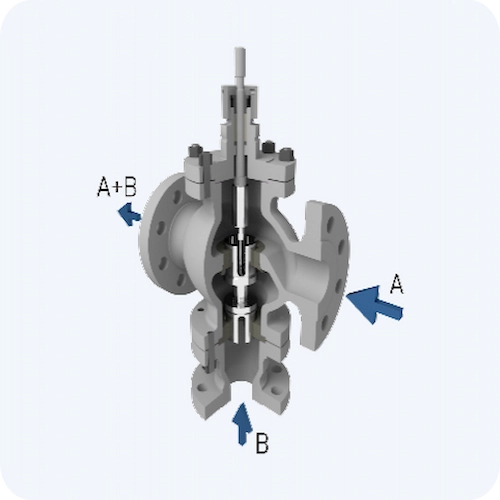

How the Three Way Flow Path Works
The valve body directs flow between multiple ports. Depending on the selected internal design, it may be used to mix two inlet streams, divert one inlet to different outlets or combine process lines. Correct flow direction marking and installation orientation are essential.
Before ordering, buyers should confirm the process diagram, required port arrangement, normal flow direction, pressure difference between lines and operation method.
- Confirm medium, pressure, temperature and flow direction before quotation.
- Match body, trim, seat, gasket and packing materials to the confirmed service.
- Review operation method, installation space and maintenance access early.
- State special cleaning, coating, testing or documentation requirements in the purchase specification.
Three Way Globe Valve vs Two Way Globe Valve
Both are globe-style valves, but the three-way design introduces flow-path decisions that must be confirmed early.
| Comparison Item | Three Way Globe Valve | Alternative Valve / Design | Buyer Note |
|---|---|---|---|
| Flow Path | Multiple port arrangement for mixing or diverting | One inlet and one outlet | Confirm process diagram before selection. |
| Control Logic | Can switch or balance process paths after review | Simpler open-close or regulation duty | Automation must match the control sequence. |
| Installation | Port orientation is critical | Installation is usually simpler | Incorrect orientation can cause process problems. |
| Maintenance | More internal flow surfaces to inspect | Fewer flow-path variables | Confirm access and spare-part plan. |
| Quotation Data | Requires port layout and flow direction | Requires basic line data | Provide P&ID or sketch if available. |
Three Way Globe Valve Selection Checklist
Selection should start from the process flow diagram, not from nominal size alone.
| Selection Factor | Why It Matters | What Buyers Should Confirm |
|---|---|---|
| Flow Function | Mixing, diverting or combining changes the internal design | Required flow path and normal operating mode |
| Medium | Corrosion, viscosity and cleanliness affect trim and seat | Fluid name, concentration and particle condition |
| Pressure Balance | Different lines may have different pressures | Pressure on each port and maximum differential pressure |
| Operation Method | Manual and automated service have different requirements | Handwheel, gear, pneumatic or electric operation |
| Control Need | Regulation duty affects trim selection | Switching, balancing or moderate regulation expectation |

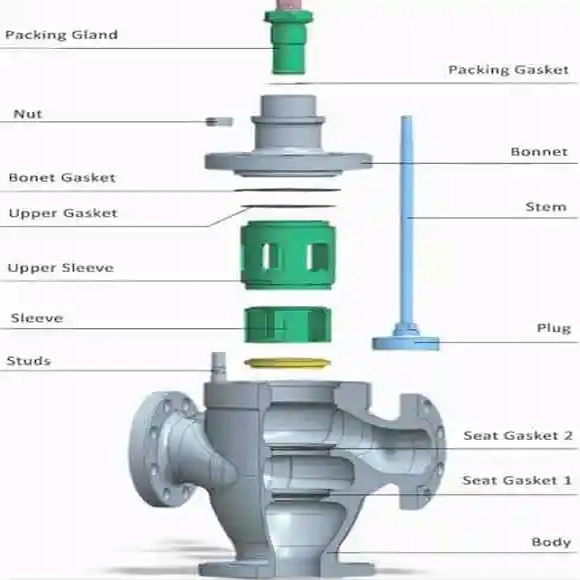

Seat, Sealing and Maintenance Considerations
The sealing system should be reviewed as a complete package. Body material, trim material, seat design, gasket, packing, bolting, operation frequency and maintenance access all affect service life. For demanding media, the selected model datasheet should be checked before any fixed performance claim is published.
- Clearly mark flow direction and port function on drawings.
- Do not assume L-port or T-port behavior without selected design confirmation.
- Review actuator fail position and signal requirement for automated service.
- Confirm seat, gasket, packing and trim material compatibility before production.
Typical Applications
Three Way Globe Valve can be used in the following types of industrial service after the actual working condition is confirmed.
- Mixing or diverting utility lines
- Chemical process branch lines
- Heating and cooling circulation systems
- Water treatment and industrial service pipelines
- Process lines requiring manual or automated flow redirection
Application Limits
- Not a direct replacement for every control valve.
- Final port arrangement must be confirmed by drawing.
- Do not publish fixed pressure, temperature or standard compliance without datasheet confirmation.
- Unequal line pressure may require special review.
Engineering Notes for Buyers
For project purchasing, the safest valve selection is made before the purchase order is released. A product name alone is not enough. Buyers should confirm process medium, pressure, temperature, flow behavior, installation orientation, connection standard, operation method, inspection requirement and export documentation needs.
Match the Valve to Real Working Conditions
The same valve type can behave differently in clean water, steam, slurry, chemical service, gas service or temperature-sensitive media. The valve should be selected according to real process conditions, not only by nominal size.
Review Material Compatibility Early
Body, trim, seat, gasket, packing and bolting materials should be checked together. If the medium is corrosive, abrasive, oxygen-related, hazardous, high temperature or low temperature, material suitability should be confirmed from the project datasheet.
Confirm Operation and Maintenance Access
Manual operation may be enough for small valves or low-frequency use. Gear, electric or pneumatic operation may be needed for larger valves, remote locations or repeated cycling. Maintenance access should also be considered before finalizing the configuration.
Use Documentation to Reduce Procurement Risk
Drawings, test reports, material certificates, inspection records, nameplate information and packing documents help buyers confirm that the delivered valve matches the approved requirement before shipment.
Common Selection Mistakes to Avoid
- Selecting only by nominal size without confirming medium and duty.
- Copying fixed pressure, temperature or standard claims from an old URL or generic catalog.
- Ignoring seat, gasket, packing or trim materials while only checking the body material.
- Using a shut-off valve for severe control duty without technical confirmation.
- Confirming the order before checking drawings, documents and installation orientation.
Ordering Workflow for Project Buyers
| Step | Buyer Input | Vcore Valve Review Focus |
|---|---|---|
| 1. Application Review | Medium, pressure, temperature, flow direction and valve function | Valve type, material direction and service suitability |
| 2. Drawing Confirmation | Size, connection standard, face-to-face requirement and installation space | Outline drawing, port direction and operation method |
| 3. Material Review | Body, trim, seat, gasket, packing and bolting requirements | Compatibility with medium and working condition |
| 4. Test and Document Scope | Pressure test, seat test, certificates and inspection records | Confirm documents before production |
| 5. Shipment Preparation | Nameplate, marking, packing and export requirement | Final photos and packing details according to order scope |
Why Work With Vcore Valve
Vcore Valve focuses on industrial flow control products for project buyers, distributors and engineering teams. We can help review service conditions, provide practical valve selection suggestions, prepare technical documents and support export packing requirements for confirmed orders.
Inspection and Documentation
| Inspection / Document | Purpose | When to Request |
|---|---|---|
| Material Test Certificate | Confirms material grades and traceability for pressure-containing and wetted parts | When material traceability is required |
| Dimensional Inspection | Checks important dimensions against approved drawing | Before shipment or third-party inspection |
| Pressure Test Report | Confirms pressure and seat test records according to order scope | For project documentation packages |
| Visual and Coating Inspection | Checks appearance, coating, marking and nameplate | Before packing and export |
| Packing List and Export Marking | Supports logistics and site receiving | For export shipments and project warehouses |
Information Required for Valve Selection
- Flow diagram or port arrangement sketch
- Medium and concentration for each line
- Project size, pressure and temperature condition
- Connection standard and installation orientation
- Manual or automated operation and required documents
Related Valve Resources
Review related valve pages that are technically closer to this product family:
Standards and Documentation References
For engineering terminology and valve specification context only, buyers may review ASME B16.34 valve standards information. Final standard compliance, size range, pressure class, temperature range and leakage test requirement must be confirmed from the selected model datasheet and purchase specification.
FAQ
What is a Three Way Globe Valve used for?
It is used to mix, divert or combine flow paths in an industrial pipeline after the required port arrangement is confirmed.
Is the flow path always the same?
No. The flow path depends on the selected body and trim design, so drawings or a process sketch should be reviewed before ordering.
Can it be automated?
Yes. Pneumatic or electric operation can be selected after torque, control signal and fail-position requirements are confirmed.
Can it replace a control valve?
Only moderate regulation should be considered unless the selected design is confirmed for the control duty.
What information is needed for quotation?
Provide port arrangement, medium, pressure, temperature, connection, operation method and inspection requirements.
Practical Takeaway
A reliable Three Way Globe Valve purchase starts with confirmed working conditions, not with a fixed catalog claim. Share the project datasheet with Vcore Valve so the valve configuration, materials, operation method and documentation scope can be reviewed before production.
