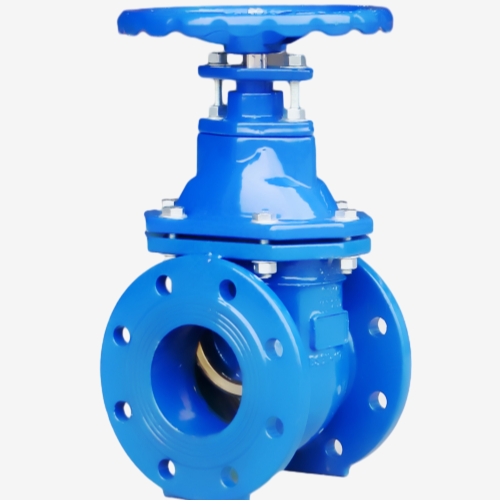

Ductile Iron Gate Valve Product Overview
A ductile iron gate valve is selected when engineers need a robust isolation valve for water or utility pipelines. Selection should verify body material, wedge and seat design, corrosion protection, connection type and operation method.
This optimized content keeps the original URL unchanged and presents a practical selection review without publishing unconfirmed rating or standard values.
Recommended Configuration
These configuration points help engineers define the valve before quotation. Fixed size, pressure, temperature, leakage and standard values are confirmed only by the selected model and datasheet.
| Configuration Item | What to Confirm | Why It Matters |
|---|---|---|
| Body material | Confirm ductile iron grade and coating | Supports strength and corrosion resistance |
| Seat design | Confirm resilient or metal seat requirement | Matches shutoff and service expectation |
| Connection type | Confirm flange, groove or project connection | Ensures installation compatibility |
| Operator | Confirm handwheel, gearbox or actuator | Matches site access and operation frequency |
Technical Specification Review
Vcore Valve checks service conditions against the approved drawing, material list and inspection plan before confirming project-specific values.
| Specification Area | Engineering Review | Confirmation Method |
|---|---|---|
| Material review | Check body, wedge, stem and seat material | Material certificate and datasheet |
| Pressure boundary | Confirm rating only from selected model | Approved drawing |
| Coating | Review internal and external coating requirement | Coating specification |
| Testing | Confirm shell and seat test scope | ITP and test report |
Application Fit
Ductile iron gate valves are commonly reviewed for municipal water, HVAC loops, plant utility networks and general non-corrosive isolation duties.
| Application | Review Point | Selection Note |
|---|---|---|
| Municipal water | Confirm coating and connection standard | Use project water specification |
| HVAC systems | Review operator and access | Check installation space |
| Plant utilities | Confirm medium compatibility | Avoid unsuitable corrosive service |
| General isolation | Review shutoff expectation | Select seat design by service |
Inspection Checklist
Inspection and packing should match the purchase order and approved documentation.
| Checklist Item | Inspection Focus | Document to Review |
|---|---|---|
| Material marking | Verify nameplate and body marking | Inspection photo |
| Dimension | Check face-to-face and connection | Dimension report |
| Seat test | Confirm shutoff test | Test report |
| Packing | Protect coating and flanges | Packing photos |
Related Gate Valve Options
Engineers may also review grooved gate valves, rubber seat gate valves, underground gate valves or bronze gate valves. Ball valve products are not used as default related options for this gate valve page.
FAQ
Where is a ductile iron gate valve used?
It is commonly used in water, HVAC, utility and plant isolation services.
Can Vcore Valve confirm the iron grade?
Yes. Material grade is confirmed from the selected model and project datasheet.
Is the seat always resilient?
No. Seat design must be confirmed according to service conditions and purchase requirements.
What information is needed for quotation?
Please provide size, connection, medium, pressure requirement, operator, coating and inspection documents.
