Key Product Features
- Designed for spray water flow regulation in steam desuperheating systems
- Suitable for attemperator, boiler steam temperature control and steam conditioning service
- Helps control cooling water injection into superheated steam systems
- Globe control valve, angle control valve or project-specific body design available
- Single-seat, cage-guided, balanced, anti-cavitation or hardened trim options
- Pneumatic actuator, electric actuator or control accessory package available
- Positioner, air filter regulator, solenoid valve, limit switch or feedback device can be configured
- Valve sizing and trim selection based on spray water pressure, flow rate and pressure drop
Product Configuration
| Configuration Item | Common Configuration | Project Options |
|---|---|---|
| Valve Type | Spray water control valve | Globe type, angle type or project-specific control valve |
| Main Function | Cooling water flow regulation for steam desuperheating | Attemperator, steam temperature control or steam conditioning service |
| Body Material | Carbon steel or stainless steel | Alloy steel or project-specified high pressure material |
| Trim Design | Single-seat or cage-guided trim | Balanced trim, anti-cavitation trim, hardened trim or multi-stage trim |
| Seat Design | Metal seat | Selected leakage class according to project requirement |
| Operation | Pneumatic actuator with positioner | Electric actuator, smart positioner or fail-safe accessory package |
| End Connection | Flanged connection | Butt weld or project-specific connection according to piping standard |
Technical Specifications
| Specification Item | Typical / Available Options |
|---|---|
| Product Type | Spray water control valve / desuperheating control valve |
| Primary Function | Regulates cooling water flow for steam desuperheating and temperature control |
| Valve Design | Globe control valve, angle control valve or project-specific spray water control valve design |
| Size Range | According to selected product series, Cv calculation and approved drawing |
| Pressure Rating | According to spray water pressure, temperature, body material and project specification |
| Body Material | Carbon steel, stainless steel, alloy steel or project-specified material |
| Trim Material | Stainless steel, hardened trim, alloy trim, hard-faced trim or project-specific trim material |
| Trim Options | Single-seat, balanced, cage-guided, anti-cavitation or multi-stage trim according to sizing result |
| Flow Characteristic | Equal percentage, linear or selected according to control requirement |
| Operation | Pneumatic actuator, electric actuator or control accessory package |
| Typical Media | Spray water, boiler feedwater, condensate or treated water after datasheet review |
| Testing Reference | According to approved inspection specification and selected product standard where applicable |
Technical note: Do not publish fixed Cv value, pressure rating, temperature range, pressure drop limit, leakage class, atomization performance or temperature control accuracy until steam data, spray water data, trim design and approved project datasheet are confirmed.
How a Spray Water Control Valve Works
A spray water control valve adjusts the amount of cooling water supplied to a desuperheater, attemperator or steam temperature control system. When steam temperature is higher than the required value, the control system may open the spray water valve further to increase cooling water injection. When steam temperature approaches the required range, the valve modulates to reduce or stabilize the spray water flow.
The final steam temperature control result depends not only on the valve, but also on spray nozzle design, spray water pressure, atomization quality, steam velocity, straight pipe length, mixing distance, temperature sensor location and control loop tuning.

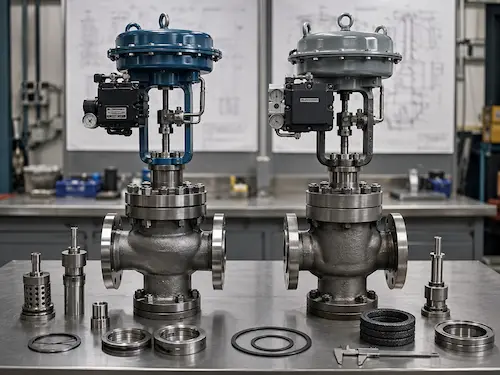

Spray Water Control Valve vs Steam Control Valve
| Comparison Item | Spray Water Control Valve | Steam Control Valve |
|---|---|---|
| Controlled Medium | Cooling water / spray water | Saturated steam, superheated steam or process steam |
| Main Function | Controls spray water flow for steam temperature reduction | Controls steam flow, pressure or process steam condition |
| Typical System | Desuperheater, attemperator or steam conditioning station | Boiler steam line, steam header, process steam control loop |
| Selection Focus | Spray water pressure, flow rate, pressure drop, trim and actuator response | Steam pressure, temperature, flow rate, noise, packing and trim design |
For steam-side control applications, review our Steam Control Valve. For feedwater-side control applications, review our Boiler Feedwater Control Valve.
Spray Water Control Valve vs Boiler Feedwater Control Valve
A spray water control valve and a boiler feedwater control valve both handle water, but their functions are different. A boiler feedwater control valve regulates the water entering the boiler for drum level or feedwater control. A spray water control valve regulates cooling water injected into steam for temperature control.
| Comparison Item | Spray Water Control Valve | Boiler Feedwater Control Valve |
|---|---|---|
| Main Function | Controls water injection for steam desuperheating | Controls boiler feedwater flow and drum level |
| System Location | Steam temperature control / desuperheater system | Boiler feedwater line / drum level control loop |
| Control Target | Steam outlet temperature after mixing | Feedwater flow or boiler drum level |
| Selection Focus | Spray flow range, atomization requirement and pressure drop | High pressure liquid control, cavitation risk and drum level response |

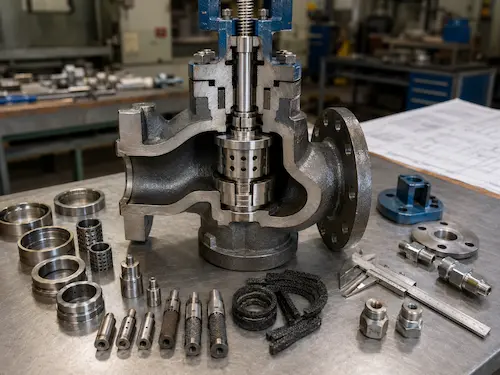

Trim and Actuator Selection
Spray water control valves often operate under changing load conditions. The valve may need stable low-flow control during startup and accurate response during load changes. Trim design and actuator sizing should be selected according to the actual spray water flow range, pressure drop and control signal.
| Selection Item | Purpose |
|---|---|
| Single-Seat Trim | Used where pressure drop and shut-off requirement are suitable for selected valve size |
| Balanced Trim | Helps reduce actuator force requirement in selected higher differential pressure service |
| Cage-Guided Trim | Supports stable plug guidance and can be configured for selected control conditions |
| Anti-Cavitation Trim | Considered where high spray water pressure drop may create cavitation risk |
| Hardened Trim | Considered for high velocity, erosion risk or demanding spray water service |
| Pneumatic Actuator | Common for fast and stable modulating control when instrument air is available |
| Electric Actuator | Selected where electric control, site automation or air supply limitation applies |
| Positioner | Improves positioning accuracy according to the temperature control signal |
Typical Applications
Typical Applications- Steam desuperheating systems
- Attemperator spray water control
- Power plant steam temperature control
- Boiler superheated steam temperature reduction
- HRSG steam conditioning systems
- Turbine bypass desuperheating systems after engineering review
- Industrial steam conditioning stations
- Refinery, chemical and power generation steam process systems
For power plant valve applications, review Power Plant Valves. For broader control valve products, visit the Control Valve category. For high pressure drop service, review our Angle Control Valve.
Application Limits
- Spray water control valves should not be selected only by nominal pipe size.
- High pressure drop service requires Cv calculation, cavitation review and actuator sizing.
- Temperature control accuracy depends on the complete desuperheating system, not only the valve.
- Spray nozzle design, mixing distance and temperature sensor location must be reviewed by the system designer.
- Low-flow operation may require special trim or rangeability review.
- Cavitation, flashing, noise or erosion risk may require special trim design.
- Leakage class depends on selected trim, seat design and test specification.
- Do not claim perfect atomization, zero leakage, no cavitation or guaranteed outlet temperature without project confirmation.
Inspection and Documentation
| Inspection / Document | Purpose |
|---|---|
| Material Test Certificate | Confirms body, bonnet, trim, stem and pressure-containing material when required. |
| Dimensional Inspection | Checks face-to-face dimension, end connection, actuator interface and valve marking. |
| Shell Pressure Test | Verifies pressure-containing body integrity under agreed test condition. |
| Seat Leakage Test | Checks shut-off performance according to selected leakage requirement. |
| Functional Stroke Test | Checks stem travel, actuator movement, valve opening range and mechanical response. |
| Positioner Calibration | Verifies valve response to control signal where positioner is supplied. |
| Actuator Sizing Check | Confirms actuator output against pressure drop and shut-off requirement. |
| Final Data Book | Collects drawings, certificates, inspection records, test reports and packing documents. |

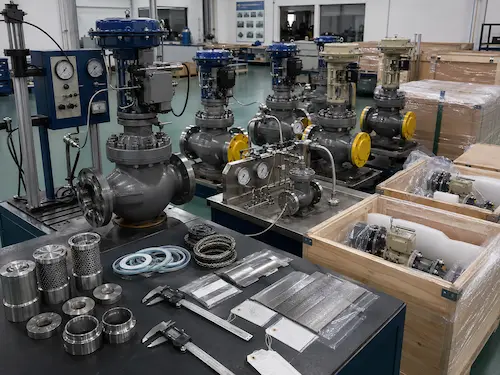

Export packing should protect flange faces, butt weld ends, trim parts, stem packing area, actuator, positioner, tubing and control accessories. Valves can be packed with port covers, moisture-resistant wrapping, foam separation and reinforced plywood cases according to valve size and shipment method.
Information Required for Valve Selection
- Valve size and quantity
- Service condition: spray water control, attemperator or desuperheating system
- Spray water pressure and temperature
- Minimum, normal and maximum spray water flow rate
- Steam pressure and steam temperature before desuperheating
- Target outlet steam temperature after desuperheating
- Normal pressure drop and maximum differential pressure across the valve
- Required Cv value if available
- Required flow characteristic: equal percentage, linear or other
- Cavitation, erosion, noise or vibration concern if specified
- Required leakage class if specified
- Control signal, fail position and actuator preference
- Body, trim, packing and gasket material requirement
- Connection standard, face-to-face requirement and installation direction
- Testing, documentation and third-party inspection requirement
FAQ
What is a spray water control valve used for?
A spray water control valve is used to regulate cooling water flow into a desuperheater, attemperator or steam temperature control system to help reduce superheated steam temperature.
Is a spray water control valve the same as a steam control valve?
No. A spray water control valve controls cooling water flow. A steam control valve controls the main steam flow or steam pressure. They work on different media and different control duties.
Is a spray water control valve the same as a boiler feedwater control valve?
No. A boiler feedwater control valve regulates feedwater entering the boiler. A spray water control valve regulates cooling water injected into steam for desuperheating or temperature control.
What causes problems in spray water control valves?
Common problems include incorrect sizing, unstable low-flow control, high pressure drop, cavitation, trim erosion, poor actuator response, insufficient spray water pressure and poor coordination with the desuperheater nozzle.
What information is needed for quotation?
For quotation, provide spray water pressure, spray water temperature, spray water flow rate, steam pressure, steam temperature, target outlet temperature, pressure drop, required Cv, control signal, fail position, actuator type, material requirement and inspection requirements.
