Product Overview

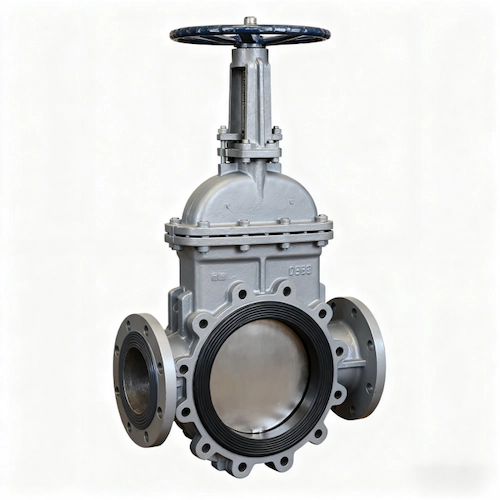

Handling abrasive slurries in mining and industrial wastewater requires a valve that can withstand constant erosion without clogging. The Vcore Valve Z73X Slurry Gate Valve is specifically engineered for high-concentration solid-liquid mixtures. Unlike standard gate valves, the Z73X Slurry Gate Valve features a specialized internal flow path and heavy-duty seating to manage tailings, ash, and coal slurry with zero leakage and minimal pressure drop.
Specialized Engineering for Abrasive Service
Bi-Directional Sealing Design
The Vcore Slurry Gate Valve is built with a reinforced bi-directional seal, allowing it to handle flow from either direction. This is crucial for mining pipelines where backflow or pressure surges are common. The seat design prevents solid particles from accumulating in the valve base, ensuring the gate can always close fully.
Erosion-Resistant Lining and Gate
Every Z73X Slurry Gate Valve produced by Vcore Valve utilizes high-chromium alloys or specialized heat-treated stainless steel for the gate plate. This provides a surface hardness that resists the “sandblasting” effect of high-velocity abrasive media, significantly extending the service life compared to conventional valves.
Self-Cleaning Flow Path
The bottom of the Slurry Gate Valve body is designed without a groove. Standard valves often fail because solids settle in the bottom groove, preventing the wedge from seating. Our “U” shape seat design ensures that as the gate closes, it flushes away any settled solids, maintaining a clear flow path.
Technical Specifications
| Category | Technical Detail |
| Brand | Vcore Valve |
| Model Series | Z73X Slurry Gate Valve |
| Pressure Rating | PN6, PN10, PN16, Class 150 |
| Body Materials | Ductile Iron, WCB, CF8, CF8M |
| Gate Material | SS304, SS316, 2205 Duplex (Hardened) |
| Seat Material | EPDM, NBR, Viton, or Metal-to-Metal |
| Size Range | DN50 to DN1200 (2 Inch to 48 Inch) |
| Applicable Media | Mining Tailings, Coal Slurry, Sewage, Ash |
| Operation Type | Manual, Pneumatic, Electric, Hydraulic |
Quality and Performance Testing
To ensure reliability in the field, every Vcore Slurry Gate Valve undergoes rigorous shell and seat pressure tests. We simulate high-viscosity conditions to verify that the Slurry Gate Valve maintains a bubble-tight seal even when the media contains a high percentage of suspended solids. Each unit is inspected for gate smoothness and coating integrity before shipment.
Application and Maintenance Insights
Selecting the Right Seat for Slurry
Choosing the seat material is the most critical factor for a Slurry Gate Valve. For acidic mining waste, we recommend Duplex stainless steel trims. For general wastewater, a reinforced EPDM seat provides the best balance of cost and abrasion resistance.
Routine Maintenance in Mining
The Vcore Z73X Slurry Gate Valve is designed for easy “in-line” maintenance. The packing gland is easily accessible, and the seat rings can be replaced without specialized tools, reducing downtime in critical processing plants.
FAQs
What makes the Z73X Slurry Gate Valve different from a standard knife gate valve?
While they look similar, the Z73X Slurry Gate Valve has a thicker body and a more robust gate to handle higher concentrations of solids. Standard knife gate valves are often too thin for high-pressure abrasive slurries, whereas the Z73X Slurry Gate Valve is built for heavy-duty industrial erosion.
Can the Vcore Slurry Gate Valve be used for throttling?
The Slurry Gate Valve is primarily designed for on-off service. However, because of the hardened gate and specialized seat, it can handle short-term flow regulation better than standard valves, though continuous throttling is not recommended for maximum seat life.
How does Vcore Valve prevent the gate from sticking in thick slurry?
The Vcore Slurry Gate Valve uses a polished, high-strength gate with a beveled edge. This edge acts like a scraper, cutting through thick sludge and preventing the “seizing” effect caused by dried-out media in the valve chest.
Is the Z73X Slurry Gate Valve suitable for high-temperature ash handling?
Yes. By replacing the elastomer seals with metal-to-metal seating and using high-temperature alloys, the Slurry Gate Valve can effectively control fly ash and hot slag in power plant applications.
What is the advantage of the PN10 pressure rating for this valve?
The PN10 rating for a Slurry Gate Valve provides a safety margin for the typical pumping pressures found in wastewater treatment and mineral processing, ensuring the valve body doesn’t deform under hydraulic shock.
