ZMA/Q/P/X Pneumatic Diaphragm 3-Way Control Valve Overview
The ZMA/Q/P/X Pneumatic Diaphragm 3-Way Control Valve is selected for process systems that need pneumatic modulation with three-way mixing or diverting flow. Final port arrangement and actuator details must follow the approved project datasheet.
ZMA/Q/P/X Pneumatic Diaphragm 3-Way Control Valve selection should confirm medium, process condition, actuator package, connection fit, inspection scope, and packing requirements before release. This ZMA/Q/P/X Pneumatic Diaphragm 3-Way Control Valve page is a model-selection reference, not a fixed datasheet claim.
Three-Way Body Assembly Review
Port orientation and flow direction should be checked against the process drawing before production.

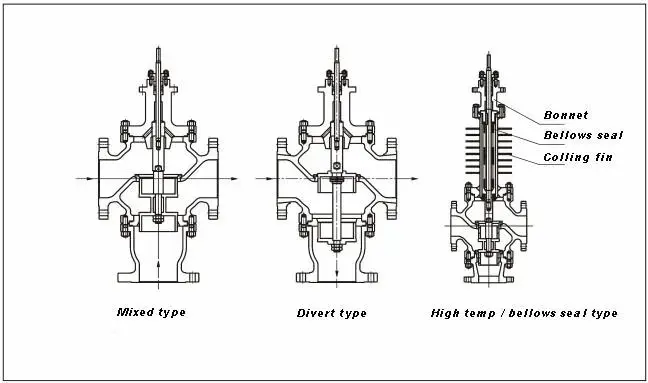

Diaphragm And Flow Structure Review
Diaphragm actuator travel, trim selection, seat arrangement, and flow path should be confirmed by sizing review.

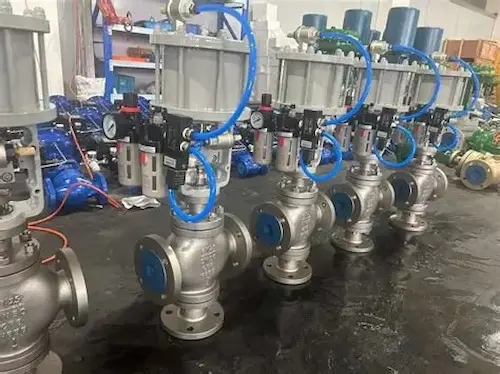

Industrial Pneumatic Application Review
Instrument air quality, tubing, positioner access, and maintenance space should be confirmed at site review.
Related product review: Engineers can compare this selection with the Vcore Valve product range before final model confirmation.
Product Configuration
| Item | Selection review |
|---|---|
| Control duty | Mixing, diverting, bypass, or process regulation duty confirmed by project data. |
| Body and trim | Three-way body orientation, trim material, seat design, and flow characteristic confirmed by selected model. |
| Actuator package | Pneumatic diaphragm actuator, positioner, air signal, fail action, and accessories confirmed by order requirement. |
| Inspection scope | Stroke test, actuator functional test, visual inspection, and packing inspection confirmed before shipment. |
Final configuration for the ZMA/Q/P/X Pneumatic Diaphragm 3-Way Control Valve should be released only after project data, drawing, and datasheet review are complete.
Technical Specifications
| Technical item | Confirmation method |
|---|---|
| Size range | Confirmed by selected model and approved datasheet. |
| Pressure class | Confirmed by selected model and approved datasheet. |
| Temperature range | Confirmed by medium, trim, packing, actuator, and approved datasheet. |
| Leakage class | Confirmed by trim selection, seat design, and approved inspection requirement. |
| Applicable standards | Confirmed by purchase order, drawing, and approved datasheet. |
No fixed size range, pressure class, temperature range, leakage class, or standard compliance is published here unless it is confirmed by the selected model and approved datasheet.
Selection Comparison
| Option | When to review |
|---|---|
| ZMA/Q/P/X Pneumatic Diaphragm 3-Way Control Valve | Best when pneumatic actuation and three-way mixing or diverting control are required. |
| Electric three-way control valve | Useful when electric actuation and electrical control integration are preferred. |
| Two separate pneumatic control valves | Useful for independent line control, but requires more space, piping, and control coordination. |
Pre-Order Checklist
- Medium and operating condition
- Control or isolation duty
- Connection and installation orientation
- Actuator signal, power or air supply, and fail action
- Inspection, documentation, nameplate, and export packing requirements
ZMA/Q/P/X Pneumatic Diaphragm 3-Way Control Valve selection note: The ZMA/Q/P/X Pneumatic Diaphragm 3-Way Control Valve should be matched to media, process condition, actuator package, inspection, and packing details. For general valve and automation terminology, the International Society of Automation resources can support engineering review; final Vcore Valve supply details follow the approved drawing and datasheet.
ZMA/Q/P/X Pneumatic Diaphragm 3-Way Control Valve FAQ
What is the ZMA/Q/P/X Pneumatic Diaphragm 3-Way Control Valve used for?
It is used for process systems that need pneumatic mixing, diverting, bypass, or regulating control through a three-way body.
Does this page publish fixed ratings?
No. Final size, pressure rating, temperature range, leakage class, material, and compliance details must be confirmed by the selected model and approved datasheet.
What should be confirmed before ordering?
Confirm flow path, port orientation, control signal, air supply, actuator accessories, fail action, inspection scope, and packing requirement.
Can Vcore Valve support three-way control valve selection?
Yes. Vcore Valve can review process data, port arrangement, actuator accessories, and document requirements before quotation.
