Quick Summary

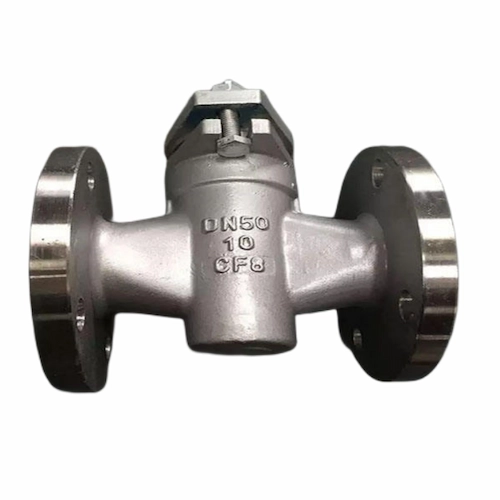

Industrial Plug Valve is a quarter-turn shut-off valve used when compact structure, fast operation and dependable isolation are required. The correct design depends on medium, pressure, temperature, sealing method, torque, operation frequency and maintenance expectation.
Key Product Features
- Quarter-turn operation supports fast open-close control.
- Compact body structure can suit limited installation space.
- Lubricated or non-lubricated design may be selected according to service.
- Manual, gearbox, electric or pneumatic operation can be considered.
- Material and sealing design can be reviewed for oil, gas, chemical utility and industrial service.
Industrial Plug Valve Overview
An industrial plug valve uses a rotating plug to open or close the flow path. It can be selected for pipeline isolation where fast quarter-turn operation and compact installation are useful.
The important buying decision is whether the plug valve design, material and sealing method match the medium. Lubricated, non-lubricated, sleeve-type and special designs should be reviewed according to pressure, temperature, corrosion risk and maintenance policy.
Product Configuration
| Configuration Item | Common Configuration | Project Options |
|---|---|---|
| Valve Type | Industrial plug valve | Lubricated or non-lubricated design after review |
| Main Function | Quarter-turn shut-off | Not a precision control valve unless specifically designed |
| Body Pattern | Compact pipeline isolation structure | End connection according to project standard |
| Sealing Design | Plug-to-seat or sleeve sealing system | Selected by medium and maintenance requirement |
| Operation | Lever, gearbox, electric or pneumatic actuator | Depends on size, torque and frequency |
| Project Support | Datasheet and drawing confirmation | Material and test documents according to order scope |
Technical Specifications
| Specification Item | Typical / Available Options | Selection Note |
|---|---|---|
| Product Type | Industrial plug valve | For compact shut-off service |
| Size | Available according to project requirements | Confirm with pipeline drawing |
| Pressure Rating | ANSI Class, PN, JIS or project standard | Confirm by design pressure |
| Body Material | Carbon steel, stainless steel, alloy or specified material | Review corrosion and temperature |
| Plug / Trim | Material selected by medium and pressure | Coating or special trim may be required |
| Design Type | Lubricated or non-lubricated | Confirm maintenance preference |
| Operation | Lever, gearbox, electric or pneumatic | Check operating torque |
Exact size, pressure rating, material, connection standard and test requirement should be confirmed from the project datasheet before ordering. When the working medium is corrosive, abrasive, toxic, flammable, very hot or very cold, material confirmation is more important than a generic catalogue description.
How Plug Valve Quarter-Turn Shut-Off Works
The plug rotates inside the valve body to align or block the flow passage. This quarter-turn movement allows quick operation, but sealing performance depends on the plug design, seat or sleeve system, lubrication method and operating torque.
- Lubricated plug valves use sealing lubricant and require maintenance planning.
- Non-lubricated designs may use sleeve or seat structures depending on service.
- Torque should be checked before actuator selection.
- Corrosive or abrasive media require material and trim review.
Plug Valve vs Ball Valve
Plug valves and ball valves are both quarter-turn valves, but their sealing structures and maintenance requirements are different.
| Comparison Item | Industrial Plug Valve | Alternative Valve / Design | Buyer Note |
|---|---|---|---|
| Shut-Off Method | Rotating plug blocks or opens the flow path | Rotating ball opens or closes the bore | Both can be used for fast isolation. |
| Maintenance | Lubricated designs may require lubricant maintenance | Many ball valves have low routine maintenance | Select by site maintenance policy. |
| Compactness | Compact body can be useful in limited space | Also compact, especially floating ball designs | Check face-to-face and actuator space. |
| Media Suitability | Depends strongly on plug, sleeve and material | Depends on ball, seat and seal material | Use medium compatibility as the first rule. |
| Automation | Possible with actuator after torque review | Commonly automated | Torque data is essential. |
Plug Valve Selection Factors
A plug valve should be selected by real working condition and maintenance expectation, not only by valve size.
| Selection Factor | Why It Matters | What Buyers Should Confirm |
|---|---|---|
| Medium | Determines corrosion, sealing and lubrication compatibility | Fluid name, concentration and cleanliness |
| Pressure / Temperature | Affects body, plug, seat and packing selection | Design and operating values |
| Lubrication Requirement | Changes maintenance method and service suitability | Lubricated or non-lubricated preference |
| Torque | Critical for manual and actuator operation | Maximum differential pressure and operating frequency |
| End Connection | Affects installation and replacement | Flange, thread, weld or project standard |
Seat, Sealing and Maintenance Considerations
Plug valve sealing depends on plug contact, sleeve or seat design, packing and lubrication method. For aggressive media, material compatibility should be checked before final selection.
- Lubricated designs may improve sealing in selected applications but require lubricant compatibility.
- Non-lubricated designs can reduce lubricant maintenance but must match pressure and medium.
- Packing material should match temperature and chemical conditions.
- Actuator sizing should include safety margin for operating torque.
Typical Applications
Industrial plug valves are used where fast shut-off and compact valve structure are useful.
- Oil and gas pipeline isolation
- Chemical utility lines after material confirmation
- Power plant auxiliary pipelines
- Industrial water and process service
- Compact shut-off points requiring quarter-turn operation
- Manual or automated isolation systems
Application Limits
- Not ideal for every abrasive or dirty medium without design review.
- Lubricant compatibility must be considered for lubricated designs.
- Not a precision throttling valve unless specially designed for control service.
- High-temperature or corrosive applications require material review.
- Torque must be confirmed for actuator selection.
Engineering Notes for Buyers
For a industrial plug valve, the best technical choice is usually made before the purchase order is placed. A valve can have the right nominal size and still fail early if the medium, temperature, solids content, corrosion risk or operation method is not fully reviewed. This is why Vcore recommends checking the service condition together with the drawing, material list and inspection requirement.
Match the Valve to Real Working Conditions
Many product failures come from selecting a valve only by name or pressure class. In actual projects, the same valve type may behave differently in clean water, steam, slurry, gas, chemical utility or low-temperature service. Buyers should confirm whether the valve is used for isolation, regulation, emergency shut-off, maintenance bypass or process safety before final selection.
Review Material Compatibility Early
Body, trim, seat, gasket, packing and bolting materials should be checked as a complete system. If the medium is corrosive, abrasive, oxygen-related, high temperature, low temperature or hazardous, the safest wording is to confirm material suitability according to the project datasheet instead of relying on a general catalogue description.
Confirm Operation and Maintenance Access
Manual operation may be enough for small sizes or low-frequency use, while gearboxes or actuators may be needed for larger valves, remote operation or repeated cycling. Maintenance access should also be reviewed. A valve installed in a difficult position may require a different actuator, stem orientation or inspection plan.
Use Documentation to Reduce Procurement Risk
Export projects often require drawings, test reports, certificates, inspection records, packing photos and nameplate confirmation. These documents help the buyer verify that the delivered valve matches the approved technical requirement before shipment.
Common Selection Mistakes to Avoid
- Selecting only by nominal size without confirming pressure, temperature and medium.
- Using a shut-off valve for continuous throttling when a control valve or globe valve would be more suitable.
- Ignoring seat, packing, gasket or trim material when the body material looks acceptable.
- Assuming one standard valve design is suitable for corrosive, abrasive, low-temperature or high-temperature service.
- Choosing an actuator before confirming operating torque, differential pressure and cycling frequency.
- Forgetting installation space, flange drilling, face-to-face length or maintenance access.
Ordering Workflow for Project Buyers
| Step | Buyer Input | Vcore Review Focus |
|---|---|---|
| 1. Application Review | Medium, pressure, temperature, flow condition and function | Valve type, material direction and service suitability |
| 2. Drawing Confirmation | Size, connection standard, face-to-face, actuator space | Dimensional compatibility and installation risk |
| 3. Material Confirmation | Body, trim, seat, gasket, packing and bolting requirements | Corrosion, abrasion, temperature and media compatibility |
| 4. Operation Method | Manual, gearbox, electric, pneumatic or hydraulic operation | Torque, frequency, control mode and site conditions |
| 5. Inspection Scope | Test reports, MTC, PMI, coating, packing and special documents | Order traceability and shipment readiness |
Why Work With Vcore Valve
Vcore Valve focuses on helping buyers select valves according to real project conditions rather than using one generic description for every application. For distributors, EPC companies, plant maintenance teams and OEM equipment builders, this can reduce communication cost and help avoid mismatch during installation.
When a project has uncertain media, special documents or non-standard requirements, Vcore can review the datasheet, drawing and application notes before quotation. This is especially important for valves used in critical isolation, leakage-sensitive service, abrasive media, low-temperature systems, high-temperature pipelines or automated operation.
Inspection and Documentation
For export projects and engineering procurement, inspection documents help buyers verify that the supplied valve matches the confirmed technical requirement. Vcore Valve can discuss the document scope before production according to the project order.
| Inspection / Document | Purpose | When to Request |
|---|---|---|
| Material Test Certificate | Confirms pressure-containing and wetted component material grades and heat numbers. | When material traceability is required by the buyer or project. |
| Dimensional Inspection | Checks connection, face-to-face, operation direction and main dimensions. | For replacement projects and flange matching. |
| Pressure Test Report | Records shell and seat test results according to the agreed standard. | For most industrial valve orders. |
| Visual and Coating Inspection | Checks casting surface, coating quality, marking and nameplate details. | For export projects and outdoor installation. |
| Packing List and Export Marking | Confirms packaging, quantity, gross weight and shipping marks. | Before shipment and customs documentation. |
| Special Test / Cleaning Record | Documents low-temperature, leakage, cleaning or other agreed tests. | Only when the project requires it. |
Information Required for Valve Selection
- Valve size and quantity
- Medium, concentration and cleanliness
- Pressure, temperature and operation frequency
- Lubricated or non-lubricated preference
- Body, plug, seat and packing materials
- Connection standard and face-to-face requirement
- Manual, gearbox, electric or pneumatic operation
Related Valve Resources
Review related valve pages that are technically closer to this product family:
FAQ
1. What is an industrial plug valve?
It is a quarter-turn valve that uses a rotating plug to open or close the flow path for pipeline isolation.
2. What is the difference between lubricated and non-lubricated plug valves?
Lubricated plug valves use sealing lubricant, while non-lubricated designs rely on sleeve or seat structures. Selection depends on medium and maintenance needs.
3. Can plug valves be automated?
Yes. Electric or pneumatic actuators can be selected after operating torque and site control requirements are confirmed.
4. Are plug valves suitable for throttling?
Most plug valves are selected for shut-off. Throttling should be confirmed only with a design intended for regulation.
5. What information is needed for quotation?
Provide medium, pressure, temperature, size, connection, material, operation method and lubrication preference.
Practical Takeaway
A plug valve can be an effective compact shut-off solution when the buyer confirms medium compatibility, sealing method, torque, material and maintenance requirements before ordering.
