Y-Pattern Globe Valve for Steam and High-Flow Applications

Conventional globe valves are valued for controlled throttling and reliable shut-off, but their internal flow path can impose a significant pressure loss. In applications such as steam distribution, boiler systems and high-flow process lines, that pressure loss can become an important selection factor.

A Y-pattern globe valve, also called an inclined globe valve or Y-type globe valve, changes the geometry of the body, stem and seat. Instead of placing the stem approximately perpendicular to the pipeline, the operating assembly is inclined toward the flow axis. The resulting passage is generally more streamlined than the conventional Z-shaped path of a standard globe valve.

This article explains how the Y-pattern design works, why it is considered for steam and high-flow applications, where its advantages are meaningful, and what engineers and procurement teams should verify before specifying one.

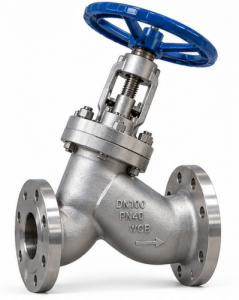

Y-pattern globe valve in an industrial valve workshop, 45-degree product view, clearly showing inclined bonnet and stem

What Is a Y-Pattern Globe Valve?

A Y-pattern globe valve is a linear-motion valve in which the bonnet, stem and seating axis are inclined relative to the main pipeline axis. The exact inclination depends on the manufacturer and design, but the purpose is consistent: reduce the abrupt changes in flow direction that occur inside a conventional globe valve.

The valve still uses the basic globe-valve operating principle. Rotating a handwheel or operating an actuator moves the stem and disc or plug toward or away from the seat. The valve can therefore provide shut-off and controlled throttling, while the inclined internal geometry improves flow passage efficiency.

Vcore already supplies inclined globe valve configurations, and additional globe-valve options can be reviewed in the industrial globe valve product range.

How the Y-Pattern Flow Path Differs from a Standard Globe Valve

The key engineering difference is not simply the external Y-shaped appearance. It is the relationship between the seat plane, stem axis and fluid passage.

In a conventional straight-pattern or Z-pattern globe valve, the fluid changes direction as it approaches the seat and then changes direction again after passing through the restriction. This geometry supports effective throttling, but it also creates resistance and turbulence.

In a Y-pattern design, the seat and stem are inclined so the fluid follows a less abrupt route through the body. This generally produces a higher flow coefficient for a comparable nominal size and can reduce the pressure loss associated with the valve when it is open.

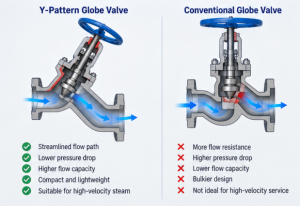

Engineering cutaway comparing a Y-pattern globe valve flow path with a conventional Z-pattern globe valve; show disc, seat, stem and directional arrows.

Why Y-Pattern Globe Valves Are Used in Steam Service

Steam systems can combine high temperature, substantial velocity, thermal cycling and significant differential pressure. These conditions make valve selection more demanding than general water service.

1. Reduced Permanent Pressure Loss

A valve installed in a main or continuously operating steam line creates an ongoing energy penalty if its resistance is excessive. The more direct passage of a Y-pattern globe valve can reduce this loss compared with a conventional globe-valve body of similar duty.

This advantage is particularly relevant where a globe valve is required for its throttling or seating characteristics but the system designer also wants to preserve available steam pressure downstream.

2. Better Suitability for Higher Flow Rates

Higher flow capacity can allow a Y-pattern valve to handle the required steam flow without forcing the same degree of acceleration through a highly restrictive internal passage. However, nominal line size alone is not sufficient for selection. Required flow, upstream and downstream pressure, temperature and permissible velocity should be reviewed together.

3. Trim Protection in Demanding Service

High-velocity steam can cause erosion at the disc, seat and adjacent body surfaces, especially when the valve operates partly open. A less abrupt flow path may reduce some localized turbulence, but severe throttling still requires careful trim selection.

For steam and high-temperature duties, hardfaced seating surfaces may be considered according to the actual operating conditions. See the Valve Trim Materials Selection Guide for 13Cr, stainless steel, Stellite and special-alloy considerations.

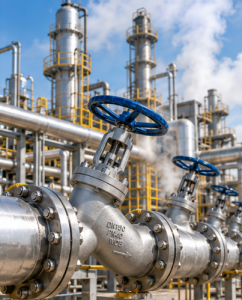

Y-pattern globe valve installed on an insulated high-temperature steam pipeline in a power plant or boiler facility; realistic outdoor/industrial application.

Where Y-Pattern Globe Valves Are Commonly Applied

The design is most valuable when the project requires globe-valve throttling or shut-off characteristics but also places greater importance on flow capacity and pressure-loss control.

Y-Pattern Globe Valve vs Angle Globe Valve

Y-pattern and angle globe valves are sometimes grouped together because both modify the conventional globe-valve flow path. They are not the same body arrangement.

A Y-pattern valve normally maintains the inlet and outlet on the same general pipeline axis while inclining the bonnet and seat assembly. An angle globe valve normally changes the piping direction through the valve body, commonly by approximately 90 degrees.

If the pipeline itself needs to turn at the valve location, an angle globe valve may eliminate a separate elbow. If the pipeline remains substantially straight but lower globe-valve resistance is desired, a Y-pattern body may be more appropriate. For the angle configuration, see Angle High Pressure Globe Valve & Throttle Valve.

Y-Pattern Globe Valve vs Standard Globe Valve

The Y-pattern design should not automatically replace every conventional globe valve. A standard globe valve remains practical for many general throttling duties, especially when flow capacity and pressure loss are not dominant constraints.

Choose between the designs by evaluating the actual system duty rather than the body shape alone:

• Choose a Y-pattern globe valve when high flow, steam duty or lower valve resistance is an important design objective while globe-valve control characteristics are still required.
• Choose a conventional globe valve when standard throttling and shut-off performance are required and its pressure loss is acceptable to the process.
• Consider a control valve when continuous automatic regulation, defined flow characteristics, high pressure-drop management or process-control accuracy is the primary duty. See the Control Valve Selection Guide.

Pressure Drop, Cv/Kv and Flow Velocity

One of the most common purchasing mistakes is specifying “high-flow Y-pattern globe valve” without defining the actual flow cases. A meaningful engineering review should include minimum, normal and maximum flow where relevant.

The supplier may need:

• Fluid or steam condition
• Upstream pressure
• Downstream pressure or differential pressure
• Operating and design temperature
• Required mass or volumetric flow rate
• Line size and schedule
• Required valve Cv or Kv, if already calculated
• Expected operating travel or throttling range
• Allowable noise, vibration or erosion limits where applicable

A larger Cv is not automatically better. An oversized throttling valve may operate too close to the seat during normal service, which can reduce controllability and concentrate velocity at the trim. The valve should be sized for the operating envelope, not selected only from the pipeline diameter.

Body, Bonnet and End Connection Selection

The Y-pattern body does not determine the pressure capability by itself. Pressure-temperature suitability depends on the complete pressure-containing design, material, wall thickness, applicable standard, pressure class and connection arrangement.

Bolted Bonnet

Bolted-bonnet construction is common across many industrial pressure classes and provides practical access for inspection and maintenance. Gasket and bolting materials must match the process temperature and project specification.

Pressure Seal Bonnet

For high-pressure and high-temperature power-plant service, a pressure-seal bonnet may be considered. The appropriate bonnet style depends on the selected valve design and pressure class. Vcore’s Pressure Seal Globe Valve page provides additional guidance for severe steam applications.

Flanged vs Butt-Weld Ends

Flanged ends simplify removal and replacement, while butt-weld ends reduce the number of external flange joints and are common in high-pressure, high-temperature piping. The correct choice depends on piping class, maintenance philosophy and project specification.

Materials for Steam and High-Temperature Service

Material selection must be based on the actual pressure-temperature combination and applicable project code. Carbon steel may be suitable for many industrial steam duties, while alloy steels are commonly considered as temperature and pressure severity increases.

Flow Direction Matters

Globe valves are directional components. The recommended flow direction can depend on disc design, pressure class, valve orientation, required closing force and manufacturer engineering.

For a Y-pattern valve, the purchaser should not assume the arrow direction from another globe-valve design. The approved drawing and manufacturer instructions should define the required installation direction. This is especially important for high differential pressure and actuated service because process forces affect stem thrust and seating load.

Manual, Electric or Pneumatic Operation

Y-pattern globe valves may be manually operated or automated depending on valve size, differential pressure, operating frequency and control function.

• Handwheel: common for local manual isolation and adjustment.
• Gear or assisted manual operation: may be considered when required operating effort becomes high.
• Electric actuator: useful for remote multi-turn operation and plant automation.
• Pneumatic or linear actuator: may be used for frequent operation or modulating duties when the valve and trim are engineered for control service.

Actuator selection must use actual valve thrust, stroke, seating force and process differential pressure. For automated projects, review the Valve Actuator Selection Guide.

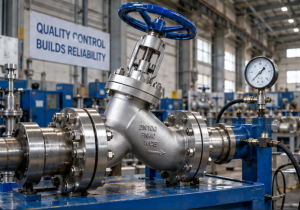

Y-pattern globe valve mounted on a professional hydrostatic test bench with safe blind fixtures, inspection tools and no readable gauge claims

Standards and Testing to Confirm

The applicable standards depend on the valve construction, material, pressure class, end connection and project specification. Rather than placing a generic standards list on every RFQ, buyers should identify which standard governs each design feature.

Standards should be confirmed against the exact valve offered. Do not assume every Y-pattern globe valve automatically complies with every globe-valve standard listed in a general catalog.

Factory Inspection for a Y-Pattern Globe Valve

For steam and high-pressure applications, procurement review should go beyond catalog dimensions. Depending on project requirements, inspection may include:

• Material certificate review and traceability
• Body, bonnet, disc, seat and stem material verification
• Dimensional inspection against approved GA drawing
• Flange or butt-weld end verification
• Visual and surface inspection
• Shell pressure test
• Seat leakage test
• Backseat test where applicable
• Operational travel and handwheel/actuator function
• PMI, NDE or additional project tests when specified
• Marking, nameplate and packing inspection

Monochrome Y-pattern globe valve engineering sketch with inclined stem, bonnet, disc, seat, body, flanges and major dimensional callouts; no marketing title.

Common Selection Mistakes

Mistake 1: Assuming Y-Pattern Means “Low Pressure Drop” in Every Case

The geometry generally reduces resistance compared with a conventional globe body, but actual pressure drop must be determined from the specific valve’s Cv/Kv and operating conditions.

Mistake 2: Selecting Only by Nominal Size and Pressure Class

Two valves with the same NPS and Class can behave very differently under high steam flow. Flow rate, differential pressure, temperature, trim and travel matter.

Mistake 3: Ignoring Throttling Erosion

A Y-pattern body improves the flow path but does not eliminate high-velocity trim damage. Severe throttling may require hardfacing, special trim geometry or a dedicated control-valve solution.

Mistake 4: Treating All Steam Service as the Same

Saturated steam, superheated steam, auxiliary steam and turbine-related systems can have very different pressure-temperature conditions and cycling requirements.

Mistake 5: Not Confirming Installation Direction

The manufacturer-approved flow direction should be shown on the drawing and valve body. Incorrect installation can change operating forces and performance.

RFQ Checklist for Y-Pattern Globe Valves

How to Choose a Y-Pattern Globe Valve for Steam and High-Flow Service

The Y-pattern globe valve is best viewed as an engineering compromise between the throttling capability of a globe valve and the desire for a more efficient flow passage. Its inclined seat and stem arrangement can improve flow capacity and reduce resistance compared with a conventional globe valve, which makes the design attractive for steam, power generation and high-flow process systems.

However, body pattern alone does not determine suitability. The final valve must be checked against the complete process envelope: pressure, temperature, flow rate, differential pressure, velocity, body material, trim, hardfacing, bonnet design, packing, connection, flow direction, operation and test requirements.

If the service involves high pressure and temperature, also compare the Y-pattern option with a pressure seal globe valve. If continuous automatic regulation is required, review the control valve range rather than selecting a manual globe valve only from its body geometry.

For a project-specific review, send Vcore Valve the medium, flow rate, pressure, temperature, line size, pressure class, materials, connection, operation method and required standards through the contact page.
