Production Overview
Production OverviewThe Solder Ball Valve from Vcore Valves is specifically designed for use in plumbing systems, hydraulic control systems, and other applications requiring secure and reliable fluid regulation. The solder ball valve uses a soldered connection that allows for leak-proof operation and is typically used in copper or brass piping systems, ensuring a durable and secure flow control solution.
Key Features
-
Soldered Connection – Provides a leak-proof, strong connection, ideal for copper and brass piping systems
-
Full-Bore Design – Ensures minimal pressure drop and high flow capacity
-
Durable Construction – Made from corrosion-resistant materials like brass, stainless steel, and bronze
-
Precise Flow Control – Ideal for on/off flow regulation in various systems
-
Easy Installation – Simple soldering process for easy installation in piping systems
-
Reliable Sealing – Tight sealing to prevent leakage even under pressure fluctuations
-
Versatile Application – Suitable for water, gas, steam, and chemical applications
-
Low Maintenance – Robust and reliable design that reduces the need for frequent maintenance
-
Flexible Actuation Options – Available in manual, pneumatic, and electric actuator options for automated control
Technical Specifications
| Item | Description |
|---|---|
| Valve Type | Solder Ball Valve |
| Body Material | Brass, Stainless Steel (304, 316), Bronze |
| Ball Material | Brass, Stainless Steel (304, 316), Chrome-Plated Carbon Steel |
| Seat Material | PTFE, PEEK, EPDM |
| Stem Material | Stainless Steel (304, 316) |
| Coating | Fusion Bonded Epoxy (FBE) for corrosion resistance |
| Size Range | DN15–DN100 (½”–4”) |
| Pressure Rating | PN10 / PN16 / PN25 / 150LB |
| Temperature Rating | -10°C to +150°C (PTFE seat), up to 250°C (metal seat) |
| Connection Type | Soldered Connection (Copper, Brass Piping) |
| Actuation Options | Manual, Pneumatic, Electric Actuator |
| Seat Type | Soft Seat (PTFE, EPDM), Metal Seat (304, 316 Stainless Steel) |
| Application | Water, Gas, Steam, Chemicals, HVAC, Plumbing |
| Standards Compliance | API 6D, ISO 9001, ANSI B16.34, AWWA C507 |
Main Dimensions & Weight
| DN (mm) | L (mm) | H (mm) | W (mm) | Weight (kg) |
|---|---|---|---|---|
| 15 | 90 | 120 | 80 | 1.2 |
| 20 | 100 | 130 | 90 | 1.5 |
| 25 | 110 | 150 | 100 | 2.0 |
| 40 | 130 | 180 | 120 | 3.0 |
| 50 | 150 | 200 | 130 | 4.0 |
| 80 | 180 | 220 | 160 | 6.5 |
| 100 | 200 | 240 | 180 | 9.5 |
Function

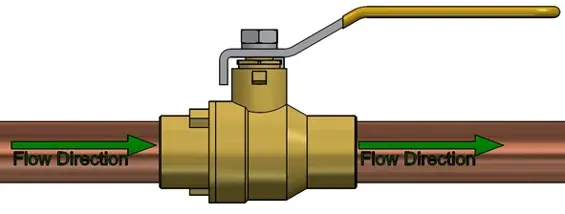

The Solder Ball Valve operates by using a rotating ball inside the valve body. The ball has a hole or port through its center, which aligns with the valve body to allow flow. When the ball is rotated by an actuator or manual handle, the port is either aligned with the pipeline to allow fluid to pass through, or rotated to block the flow completely.
The soldered connection ensures a leak-proof bond between the valve and the piping, making it ideal for copper and brass piping systems used in plumbing, heating, and other fluid systems. The full-bore design minimizes flow resistance, making it ideal for applications requiring high flow capacity and low pressure drop.
The valve’s tight sealing system ensures that the valve can maintain a closed position without leakage, even under fluctuating pressure conditions. This makes it ideal for on/off control in water, gas, and steam systems.
Application
Application-
Water Systems – Flow regulation in residential and industrial water distribution systems
-
Gas Systems – Isolation and control of natural gas, propane, and other gas systems
-
Steam Systems – Flow control in steam pipelines and boiler systems
-
Plumbing – Ideal for use in residential, commercial, and industrial plumbing systems
-
HVAC Systems – Isolation and control of hot and cold water flow in heating and cooling systems
-
Chemical Processing – Flow control of chemicals and solvents in manufacturing and processing systems
-
Food & Beverage – Flow regulation in food and beverage production lines
