Forged valve materials are widely used in high-pressure, small-bore, oil and gas, chemical, steam, power plant, pipeline, and severe industrial service. Compared with cast valve bodies, forged valve bodies are produced from forged steel blocks or billets and are commonly used where compact construction, dense material structure, high pressure capability, or project-controlled material traceability is required.
For industrial buyers, choosing a forged valve material is not only about selecting “carbon steel” or “stainless steel.” A105, LF2, F304, F316, F51, F53, F11, and F22 are used for different working conditions. The correct material depends on medium, pressure, temperature, corrosion risk, low-temperature requirement, high-temperature strength, end connection, seat material, trim material, MTC, PMI, and project specification.
This guide explains the most common forged valve materials and how buyers should select them for forged ball valves, gate valves, globe valves, check valves, socket weld valves, threaded valves, API 6D pipeline valves, high-pressure valves, and special service valves.
For broader valve material selection, read our valve material selection guide. For the manufacturing difference between forged and cast construction, read forged vs cast valves.
What Are Forged Valve Materials?
Forged valve materials are metal grades used to manufacture forged valve bodies, bonnets, end caps, covers, pressure-containing parts, stems, balls, discs, and other valve components. Forged materials are commonly used for compact high-pressure valve designs, welded-end valves, threaded valves, socket weld valves, and project-specific valve constructions.
Forged valves are often selected when buyers need better material density, pressure resistance, dimensional accuracy, or controlled material traceability. However, forged construction does not automatically mean the valve is suitable for every service. The material grade must still match the medium, temperature, pressure, corrosion risk, and required standard.
Common Forged Valve Material Grades
| Forged Material | Material Family | Typical Use | Main Selection Reason |
|---|---|---|---|
| ASTM A105 | Forged carbon steel | General forged steel valves | General pressure service and cost-effective carbon steel construction |
| ASTM A350 LF2 | Low-temperature forged carbon steel | Low-temperature oil, gas, LPG, and pipeline service | Low-temperature toughness and impact performance |
| ASTM A182 F304 | Forged stainless steel | General stainless forged valves | Clean water, air, mild chemical, and general stainless service |
| ASTM A182 F316 | Forged stainless steel with molybdenum | Chemical, chloride, wastewater, marine-related service | Better corrosion resistance than F304 in many services |
| ASTM A182 F51 | Forged duplex stainless steel | Seawater, chloride, offshore, desalination, corrosive service | Higher strength and better chloride resistance than common stainless steel |
| ASTM A182 F53 | Forged super duplex stainless steel | More severe seawater, offshore, chloride, and corrosive service | Stronger corrosion resistance than standard duplex in severe applications |
| ASTM A182 F11 | Forged alloy steel | High-temperature steam, refinery, and thermal process service | High-temperature strength for alloy steel valve applications |
| ASTM A182 F22 | Forged alloy steel | Higher-temperature steam, power plant, refinery, petrochemical service | Stronger high-temperature alloy performance than F11 in many applications |

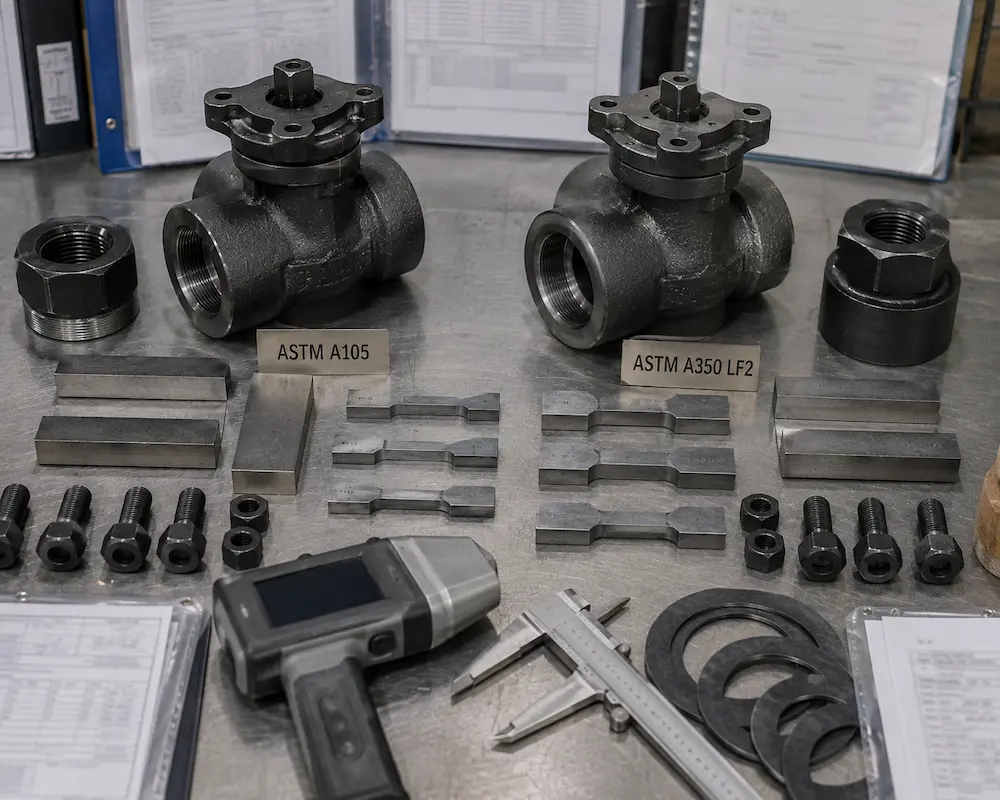

A105 Forged Carbon Steel Valve Material
ASTM A105 is one of the most common forged carbon steel materials for industrial valves. It is used for forged ball valves, forged gate valves, forged globe valves, forged check valves, socket weld valves, threaded valves, and compact high-pressure valves.
A105 is commonly selected for general pressure service where carbon steel is suitable and low-temperature impact toughness is not a special requirement.
A105 is commonly used for:
- General forged carbon steel valves
- Oil and gas utility service
- Steam and condensate systems
- Industrial water and utility lines
- Refinery and petrochemical process service
- Socket weld and threaded small-bore valves
- High-pressure forged ball valves
A105 should not be automatically used for low-temperature service. If the project datasheet requires low-temperature toughness or impact testing, LF2 may be required instead.
LF2 Low-Temperature Forged Carbon Steel Valve Material
ASTM A350 LF2 is a low-temperature forged carbon steel material used when low-temperature toughness is required. It is commonly selected for natural gas, LPG, low-temperature hydrocarbon, cold-climate pipeline, and project applications requiring impact-tested forged material.
LF2 is commonly used for:
- Low-temperature oil and gas service
- Natural gas pipeline systems
- LPG and low-temperature hydrocarbon service
- Cold-climate outdoor pipelines
- API 6D pipeline valves requiring low-temperature material
- Forged ball valves for low-temperature pressure service
- Projects requiring impact-tested forged steel valves
LF2 is not simply a “better A105.” It should be selected when minimum design temperature, impact test requirement, or project specification requires low-temperature forged carbon steel.

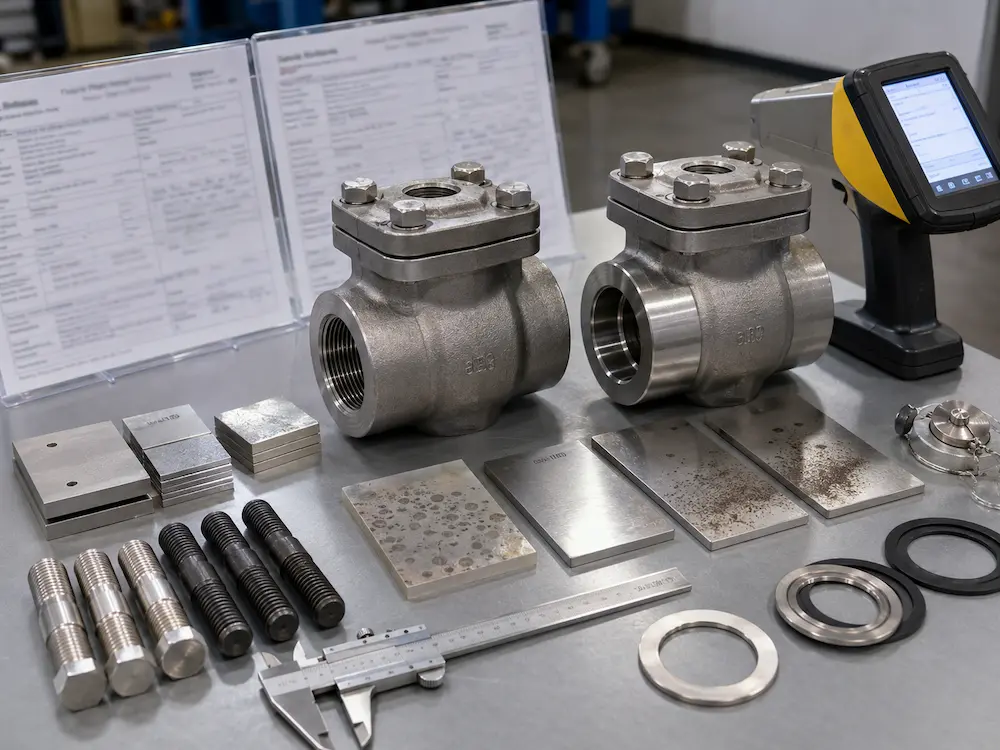

F304 Forged Stainless Steel Valve Material
ASTM A182 F304 is a forged stainless steel material used for general stainless steel forged valve service. It is commonly selected where corrosion resistance is required but the medium is not highly corrosive or chloride-rich.
F304 is commonly used for:
- General forged stainless steel valves
- Clean water and utility service
- Air and non-corrosive gas systems
- Mild chemical service
- Food and beverage related utility lines
- General stainless process pipelines
- Applications where 304-type stainless steel performance is acceptable
F304 may not be suitable for chloride-rich water, seawater exposure, strong chemical service, or severe corrosion applications without engineering review.
F316 Forged Stainless Steel Valve Material
ASTM A182 F316 is a forged stainless steel material selected when better corrosion resistance is required than F304. The molybdenum content in F316 improves corrosion resistance in many chloride-containing and chemical environments.
F316 is commonly used for:
- Chemical processing pipelines
- Chloride-containing water service
- Wastewater and process water with higher corrosion risk
- Marine and coastal environments
- Food, beverage, and pharmaceutical-related systems
- Forged stainless valves requiring 316-type material
- Applications where F304 may not provide enough corrosion resistance
F316 is often preferred for more corrosive service, but it is not a universal solution for every severe chemical or seawater condition. Duplex, super duplex, Monel, Inconel, Hastelloy, titanium, PTFE lining, or rubber lining may be required for more severe service.
For a broader stainless steel comparison, read 304 vs 316 stainless steel valves.

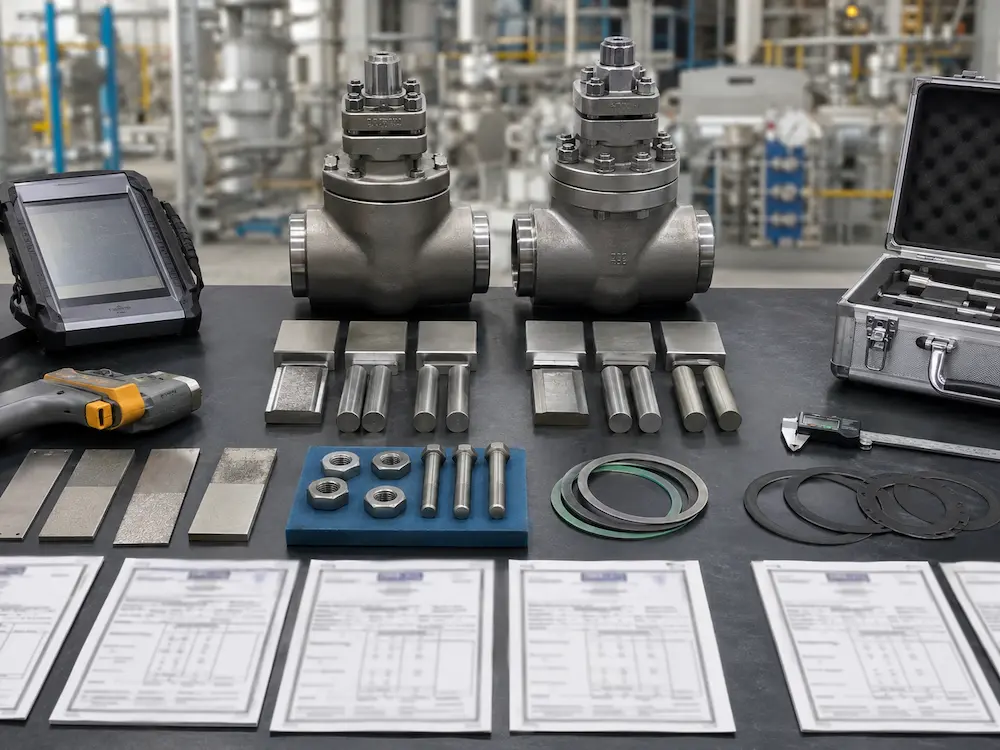

F51 Duplex Stainless Steel Forged Valve Material
ASTM A182 F51 is a forged duplex stainless steel material commonly associated with duplex 2205-type applications. It is used where stronger chloride corrosion resistance and higher strength are required compared with common 304 or 316 stainless steel.
F51 is commonly used for:
- Seawater and chloride-containing water
- Offshore oil and gas service
- Desalination systems
- Marine utility systems
- Chemical processing with chloride corrosion risk
- Corrosive wastewater and industrial water
- Forged duplex ball valves and check valves
F51 should be selected when the medium, chloride level, temperature, and project specification require duplex stainless steel performance. Seat, gasket, bolting, spring, and trim materials must also be reviewed for the same corrosive environment.
F53 Super Duplex Stainless Steel Forged Valve Material
ASTM A182 F53 is a forged super duplex stainless steel material used in more severe chloride, seawater, offshore, and corrosive service conditions. It is selected when standard duplex stainless steel may not provide enough corrosion resistance.
F53 is commonly used for:
- Severe seawater service
- Offshore and subsea-related applications
- High-chloride process systems
- Desalination brine service
- Corrosive chemical processing
- Critical forged valve components requiring super duplex material
F53 is more expensive than F51 and should be selected only when the project condition justifies super duplex material. Buyers should confirm exact material grade, PMI, MTC, and project documentation requirements before production.

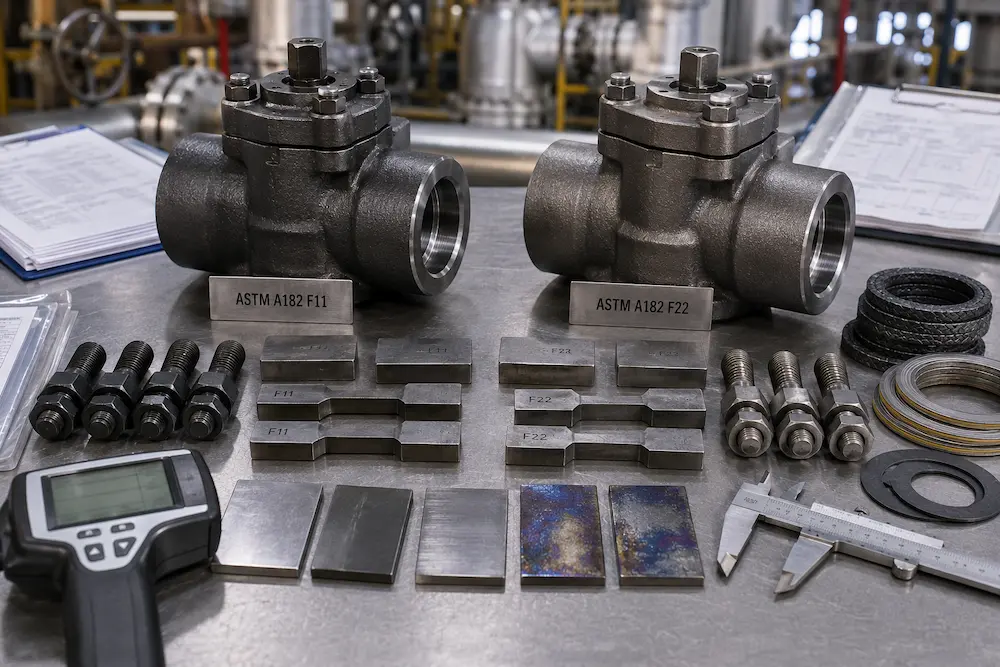

F11 Forged Alloy Steel Valve Material
ASTM A182 F11 is a forged alloy steel material used for high-temperature pressure service. It is commonly selected for forged valves in steam, refinery, petrochemical, power plant, and thermal process applications.
F11 is commonly used for:
- High-temperature steam systems
- Refinery process lines
- Petrochemical thermal process service
- Power plant auxiliary systems
- Thermal oil service
- Forged alloy steel gate, globe, and check valves
F11 is selected when carbon steel is not enough for the temperature condition but the application does not require the higher alloy level of F22.
F22 Forged Alloy Steel Valve Material
ASTM A182 F22 is a forged alloy steel material used for higher-temperature pressure service. Compared with F11, F22 is generally reviewed for stronger high-temperature performance in more demanding steam, refinery, petrochemical, and power applications.
F22 is commonly used for:
- Higher-temperature steam service
- Power plant high-temperature systems
- Refinery high-temperature process lines
- Petrochemical thermal service
- Forged high-temperature globe valves and gate valves
- Applications requiring stronger alloy steel performance than F11
F22 should not be selected only because it sounds stronger. The correct choice should follow design temperature, pressure class, valve standard, trim material, gasket material, bolting, and project specification.
Forged Carbon Steel vs Forged Stainless Steel vs Forged Alloy Steel
| Material Group | Common Grades | Main Service | Buyer Notes |
|---|---|---|---|
| Forged Carbon Steel | A105 | General pressure service | Economical and common, but not for special low-temperature or severe corrosion requirements |
| Low-Temperature Forged Carbon Steel | LF2 | Low-temperature oil, gas, LPG, pipeline service | Review minimum design temperature and impact test requirements |
| Forged Stainless Steel | F304, F316 | Corrosion-resistant stainless steel valve service | F316 is better than F304 for many chloride and chemical applications |
| Forged Duplex / Super Duplex | F51, F53 | Seawater, offshore, desalination, high-chloride service | Exact grade, PMI, and MTC should be confirmed |
| Forged Alloy Steel | F11, F22 | High-temperature steam, refinery, petrochemical, power plant service | Review design temperature, heat treatment, bolting, gasket, and trim materials |
Forged Valve Materials by Service Condition
General Oil, Gas, Water and Utility Service
A105 is commonly selected for general forged carbon steel valve service where carbon steel is suitable and no special low-temperature, high-temperature, or corrosion-resistant material is required.
Low-Temperature Oil and Gas Service
LF2 should be reviewed when the service involves low-temperature gas, LPG, cold hydrocarbon service, cold-climate pipeline operation, or project-specified impact testing.
Chemical and Corrosive Service
F316 is often preferred over F304 for many chemical and chloride-containing services. For stronger corrosion conditions, F51, F53, Monel, Inconel, Hastelloy, titanium, PTFE lining, or rubber lining may be required.
Seawater and Offshore Service
F51 and F53 are reviewed when seawater, offshore, desalination, or high-chloride service requires better corrosion resistance than common stainless steel. F53 is used for more severe conditions than F51.
High-Temperature Steam and Power Service
F11 and F22 are used for forged alloy steel valves in high-temperature steam, power plant, refinery, petrochemical, and thermal process systems. Seat, trim, gasket, packing, and bolting materials must also be suitable for high temperature.
High-Pressure Small-Bore Service
Forged construction is commonly used for compact high-pressure small-bore valves, including socket weld valves, threaded valves, forged ball valves, forged gate valves, forged globe valves, and forged check valves.
For compact welded-end valves, review our socket weld ball valve. For high-pressure isolation, review our high pressure ball valve.
Forged Valve Materials by Valve Type
Forged Ball Valves
Forged ball valves may use A105, LF2, F304, F316, F51, F53, F11, F22, or project-specified materials depending on pressure, temperature, corrosion, end connection, seat design, and application.
A105 is common for general service. LF2 is used for low-temperature service. F304 and F316 are used for stainless service. F51 and F53 are used for seawater or chloride service. F11 and F22 are reviewed for high-temperature service.
Forged Gate Valves
Forged gate valves are often used in high-pressure, high-temperature, oil and gas, power plant, and process service. Body material, wedge material, stem material, seat ring, gasket, packing, and bolting must be selected together.
Forged Globe Valves
Forged globe valves may experience throttling and pressure drop. In addition to forged body material, trim material and hardfacing should be reviewed when erosion, steam, high temperature, or severe regulation service is involved.
Forged Check Valves
Forged check valves are used for backflow prevention in compact pressure systems. Disc, spring, hinge pin, seat ring, body material, and gasket material must match the medium and temperature.
Socket Weld and Threaded Forged Valves
Socket weld and threaded valves are commonly made from forged materials because they are often used in small-bore high-pressure piping. Buyers should confirm end connection standard, welding requirement, pressure class, and material compatibility with the connected pipe.
API 6D Pipeline Valves
Forged materials may be used in API 6D pipeline valves depending on valve design and project specification. A105, LF2, F304, F316, F51, and alloy steel materials may be reviewed according to pipeline pressure, temperature, low-temperature requirement, corrosion risk, and sour service conditions.
For pipeline isolation service, review our API 6D ball valve.
How to Choose Forged Valve Materials
| Selection Question | Recommended Material Direction | Buyer Notes |
|---|---|---|
| Is the service general carbon steel pressure service? | A105 | Common and economical forged carbon steel option |
| Is low-temperature toughness required? | LF2 | Confirm minimum design temperature and impact test requirement |
| Is general stainless steel corrosion resistance required? | F304 | Suitable for many clean water, air, and mild service conditions |
| Is better chloride or chemical resistance required? | F316 | Better than F304 in many chloride-containing and chemical applications |
| Is seawater or high-chloride service involved? | F51 or F53 | F53 is reviewed for more severe service than F51 |
| Is high-temperature steam or thermal service involved? | F11 or F22 | Confirm pressure-temperature rating, heat treatment, trim, gasket, and bolting |
| Is the service highly corrosive or severe? | Special alloy or lined valve | Review Monel, Inconel, Hastelloy, titanium, PTFE lining, rubber lining, or hardfaced trim |
Forged vs Cast Valve Materials
Forged valve materials and cast valve materials are not the same. Buyers should not mix forged and cast material names in purchase orders.
| Forged Material | Comparable Cast Material | Simple Buyer Meaning |
|---|---|---|
| A105 | WCB | General carbon steel valve material |
| LF2 | LCB | Low-temperature carbon steel valve material |
| F304 | CF8 | 304-type stainless steel valve material |
| F316 | CF8M | 316-type stainless steel valve material |
| F11 / F22 | WC6 / WC9 in many cast alloy steel discussions | High-temperature alloy steel valve material family |
This table is only a practical buyer reference. Exact material equivalence should always follow the required ASTM standard, product design, project datasheet, and material certificate.
Seat, Trim, Gasket and Bolting Materials Still Matter
Choosing the correct forged body material does not complete valve selection. The full valve material system must match the working condition.
Buyers should also check:
- Ball, disc, gate, plug, wedge, or trim material
- Stem material
- Seat material: PTFE, RPTFE, PEEK, PCTFE, PPL, or metal seat
- Gasket material: PTFE, graphite, spiral wound gasket, or project-specific gasket
- Packing material: PTFE, graphite, flexible graphite, or low-emission packing
- Bolting material for pressure, temperature, and external corrosion
- Spring material in check valves or spring-return designs
- Hardfacing or coating requirement for metal seated valves
For seat selection, read our valve seat materials guide. For internal parts, read our valve trim materials guide.

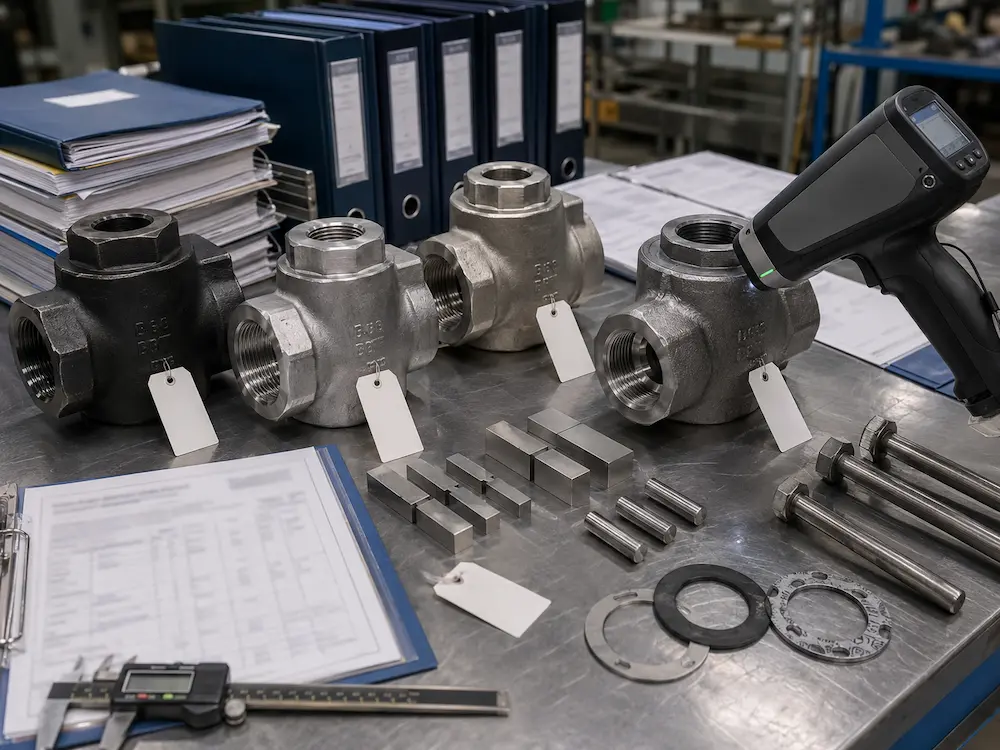

Material Certificate, PMI and Testing Requirements
For forged valve materials, buyers should review material certificates carefully. The MTC should match the required material grade, heat number, chemical composition, mechanical properties, and component scope.
Important document checks include:
- Material grade: A105, LF2, F304, F316, F51, F53, F11, F22, or project material
- Applicable ASTM material standard
- Heat number traceability
- Chemical composition
- Mechanical properties
- Impact test result for low-temperature material where required
- Heat treatment information for alloy steel where required
- PMI requirement for stainless steel, duplex, super duplex, or special alloy materials
- Component scope: body, bonnet, end cap, stem, ball, disc, trim, or bolting
- Consistency with purchase order, datasheet, and project specification
For project orders, the documentation requirement should be confirmed before production, especially for low-temperature, duplex, super duplex, high-temperature alloy, API 6D, fire-safe, NACE, or third-party inspection projects.
Common Mistakes When Selecting Forged Valve Materials
Mistake 1: Selecting Only by Pressure Class
Pressure class is important, but it does not define material suitability. Medium, temperature, corrosion, low-temperature toughness, seat material, and end connection must also be checked.
Mistake 2: Using A105 for Low-Temperature Service Without Review
A105 should not replace LF2 when low-temperature toughness or impact testing is required by the project specification.
Mistake 3: Treating F304 and F316 as the Same Stainless Steel
F316 usually provides better corrosion resistance than F304 in many chloride-containing and chemical environments.
Mistake 4: Using F316 for Severe Seawater Without Reviewing Duplex
F316 may not be enough for severe seawater, offshore, or high-chloride service. F51, F53, Monel, titanium, or other materials may need to be reviewed.
Mistake 5: Choosing F22 When F11 Is Enough
F22 may provide stronger high-temperature alloy performance, but it is not always necessary. The final choice should follow design temperature and project requirements.
Mistake 6: Ignoring Seat and Packing Limits
A forged alloy steel body can still fail if the seat, gasket, packing, or O-ring material is not compatible with temperature, pressure, or medium.
Mistake 7: Mixing Forged and Cast Material Names
A105, LF2, F304, and F316 are forged material grades. WCB, LCB, CF8, and CF8M are cast material grades. Buyers should use the correct material name in the purchase order.
Information Buyers Should Provide Before Quotation
- Valve type: ball, gate, globe, check, needle, plug, or control valve
- Valve size and pressure class
- Required forged body material: A105, LF2, F304, F316, F51, F53, F11, F22, or project grade
- End connection: socket weld, threaded, butt weld, flanged, RTJ flange, or project-specific connection
- Medium name and chemical composition
- Operating pressure and design pressure
- Operating temperature, minimum design temperature, and maximum design temperature
- Whether low-temperature impact testing is required
- Whether high-temperature service or thermal cycling is involved
- Whether chloride, seawater, acid, alkali, oil, gas, steam, or solids are present
- Required seat, trim, gasket, packing, stem, ball, and bolting materials
- Required design standard and test standard
- Whether fire-safe, anti-static, NACE, low-emission, or API 6D requirement applies
- Whether MTC, PMI, third-party inspection, or EN 10204 3.1 certificate is required
- Project specification or approved valve datasheet if available
Related Valve Material Guides
- Valve Material Selection Guide — main guide for valve body, trim, seat, seal, gasket, and bolting material selection.
- Forged vs Cast Valves — explains the difference between forged and cast valve construction.
- 304 vs 316 Stainless Steel Valves — explains stainless steel valve material selection including CF8 and CF8M.
- Valve Seat Materials Guide — explains EPDM, NBR, FKM, PTFE, PEEK, graphite, and metal seat selection.
- Valve Trim Materials Guide — explains 13Cr, stainless steel, Stellite, Monel, Inconel, duplex, and hardfaced trim selection.
Final Recommendations for Industrial Buyers
Forged valve materials should be selected according to real service conditions, not only by price or standard stock availability. A105 is practical for general forged carbon steel valves. LF2 is selected when low-temperature toughness is required. F304 and F316 are used for forged stainless steel valves, with F316 preferred in many chloride-containing and chemical services. F51 and F53 are used for duplex and super duplex corrosion-resistant applications. F11 and F22 are selected for high-temperature alloy steel service.
The correct forged material must match the medium, pressure, temperature, corrosion risk, impact requirement, end connection, welding condition, seat material, trim material, gasket, packing, bolting, material certificate, and project standard.
If you need help selecting A105, LF2, F304, F316, F51, F53, F11, F22, or other forged valve materials for industrial valves, Vcore Valve can review your working conditions and recommend a suitable valve material configuration.
For industrial sourcing, the key question is not only “Is this a forged steel valve?” The better question is: “Does the forged material grade match the pressure, temperature, corrosion, impact toughness, seat material, trim material, end connection, and project documentation requirement?”
FAQ
1. What are common forged valve materials?
Common forged valve materials include ASTM A105, ASTM A350 LF2, ASTM A182 F304, F316, F51, F53, F11, F22, and other project-specified forged steel or alloy materials.
2. What is ASTM A105 used for in valves?
ASTM A105 is a forged carbon steel material used for general pressure service in forged ball valves, gate valves, globe valves, check valves, socket weld valves, and threaded valves.
3. What is the difference between A105 and LF2?
A105 is used for general forged carbon steel service, while LF2 is selected when low-temperature toughness and impact performance are required.
4. What is the difference between F304 and F316?
F304 is a forged 304-type stainless steel material for general stainless service, while F316 contains molybdenum and provides better corrosion resistance in many chloride-containing and chemical environments.
5. What are F51 and F53 forged valve materials?
F51 is a forged duplex stainless steel material, while F53 is a forged super duplex stainless steel material. They are used for seawater, chloride-containing, offshore, desalination, and corrosive service.
6. What are F11 and F22 forged valve materials?
F11 and F22 are forged alloy steel materials used for high-temperature steam, refinery, petrochemical, power plant, and thermal process service. F22 is generally reviewed for more demanding high-temperature service than F11.
